Description

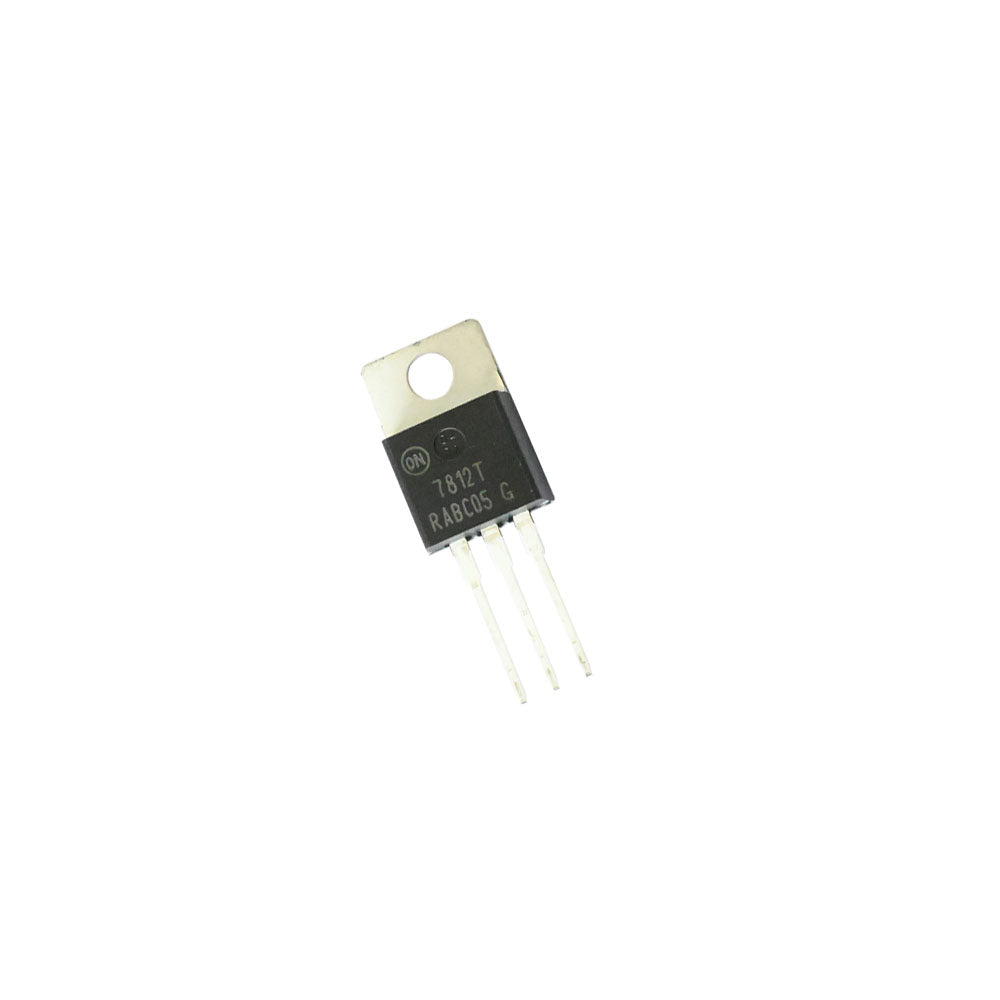

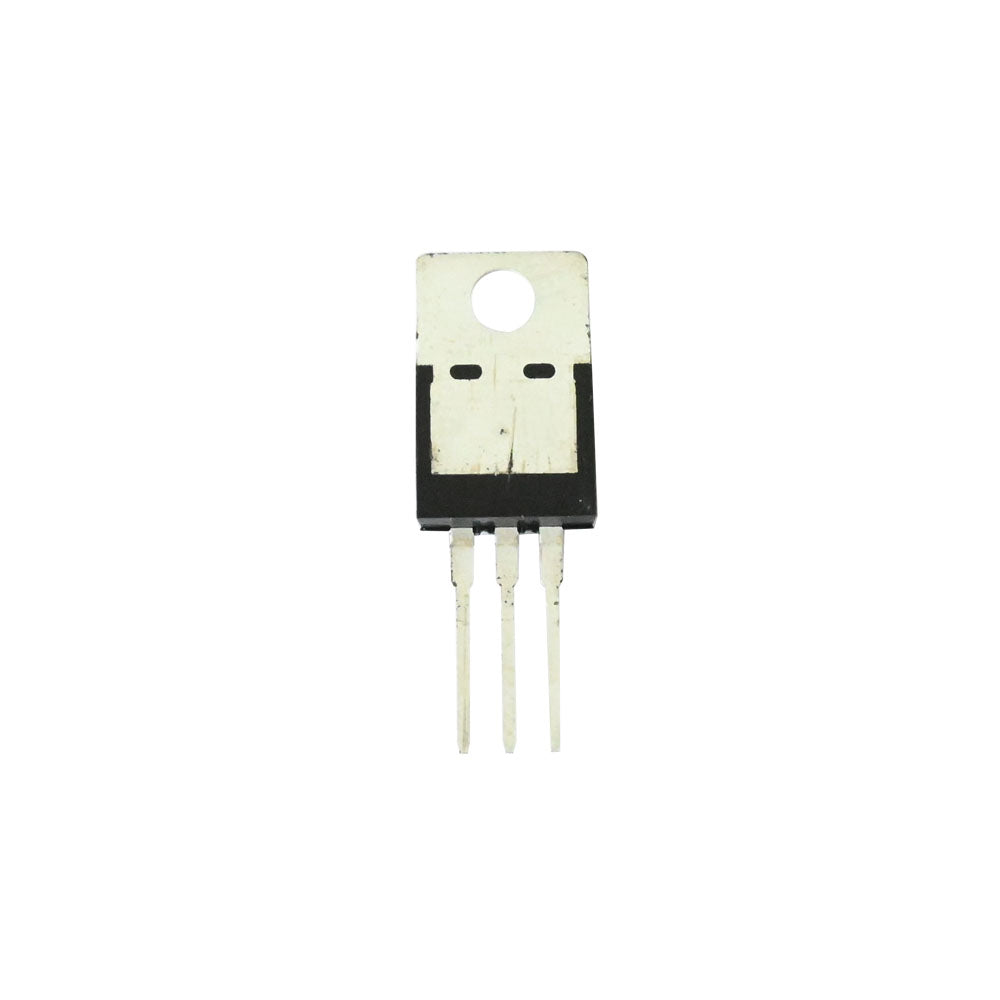

It is Onsemi 7812T 12V 1A TO-220 Package Positive Voltage Regulator. A voltage regulator is a monolithic integrated circuit designed as a fixed−voltage regulator for a wide variety of applications including local, on−card regulation. It has an internal current limiting, thermal shutdown and a safe area compensation. It can deliver maximum output current of 1A. Although it is designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Features:
- Output Current in Excess of 1.0 A
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
Specifications:
| Model | 7812T |
| Brand | On-Semiconductor |
| Type | Voltage Regulator |
| Package | TO-220 |
| Voltage | 12V |
| Current | 1A |
| Mounting Type | Through Hole |
| Power Dissipation | Internally Limited |
| Country of Origin | China |
