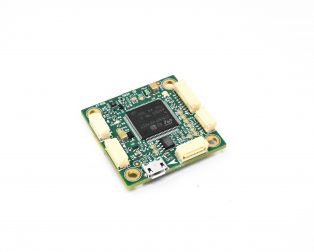

The pinnacle of precision and power within the PX4 ecosystem, the OmniMini stands as a cutting-edge solution designed explicitly for commercial, industrial, and defense applications, as well as UAS manufacturers. Boasting a 32-bit STM32F427 Cortex M4 core with FPU clocked at 168 MHz and equipped with 256 KB RAM and 2 MB Flash, this autopilot is engineered to deliver unparalleled performance. Dive into a world of advanced capabilities with its extensive features, robust specifications, and a comprehensive array of interfaces, setting a new standard of autonomy for unmanned systems.
Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Precision Navigation: Less than 1° error in pitch, roll, and heading, with a drift of under 0.2 m/min.
- High Sensor Accuracy: Gyro range +/-2000%, accelerometers range +/-16 g, 3-axis magnetometer, sampling rate up to 250 Hz, position accuracy of 0.2 m CEP.
- Multi-constellation GNSS: Supports GPS, GLONASS, BeiDou, and Galileo for enhanced reliability and accuracy.
- Robust Mechanical Design: Compact and lightweight at 38x38x1.8 mm and 9.7 g, operational in temperatures from -20°C to +65°C, and humidity up to 60% RH.
- Enhanced Safety and Redundancy: Features triple accelerometer, gyroscope, single barometer, magnetometer, temperature sensing, and waypoint navigation with built-in redundancy and diagnostics.
- Advanced Processing Power: Powered by an Arm Cortex M4 CPU with floating-point capabilities, ensuring high performance for complex tasks.
Package Includes:
1 x Omni Mini Autopilot Drone Flight Controller – Made in India
