NSN 12012 AL +01215 NO Step Down Transformer

Save 5%
Sold By: HatchnHackSKU: J04-23

Price:
Sale price₹ 273.00 Regular price₹ 288.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

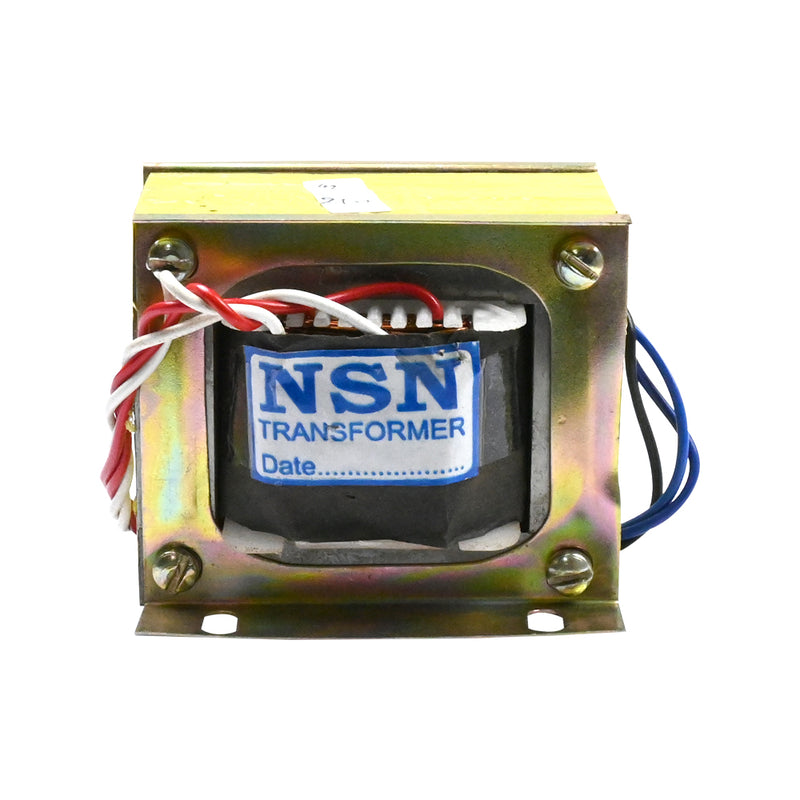

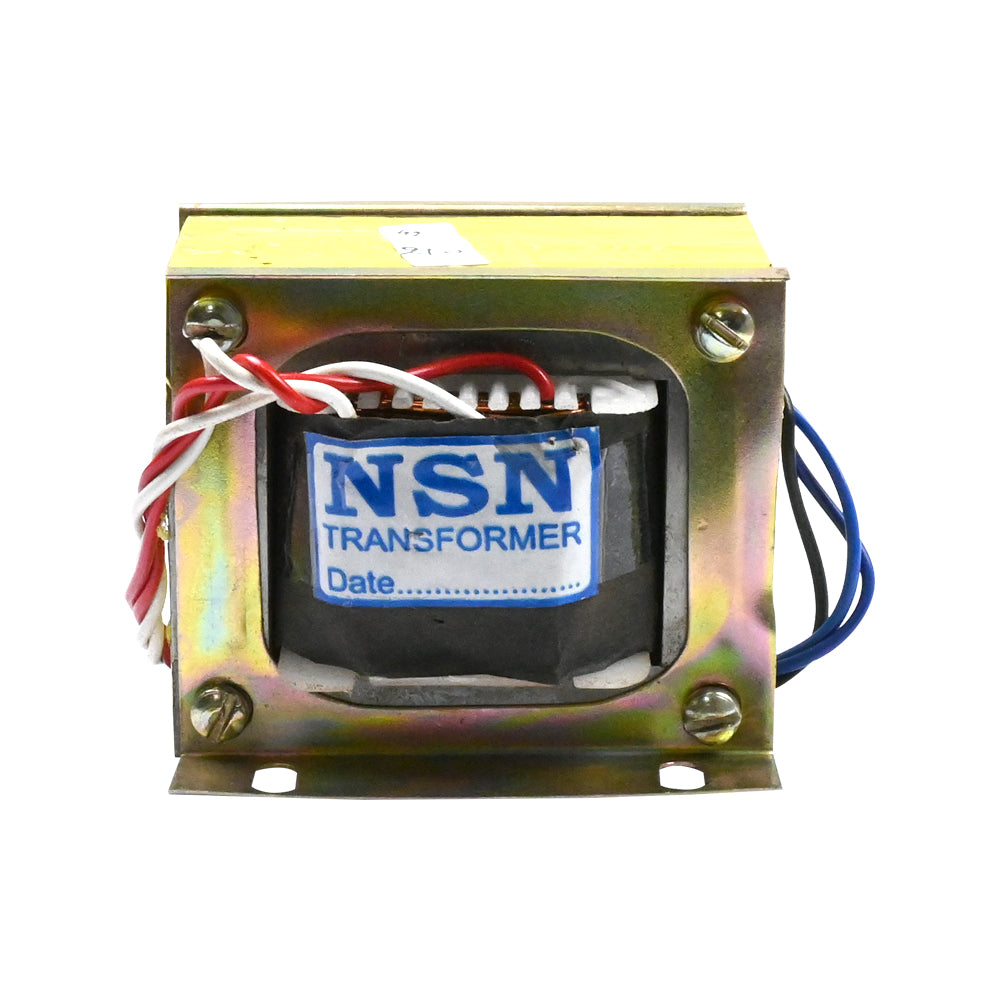

12012 AL +01215 NO Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. . A center tapped transformer has equal winding in primary and secondary coil, which is mostly prefer to used in Rectification Circuit. Like in full wave rectifier, LED Driver, SMPS, UPS DC motor Driver. enter tap refers to a connection established at the midpoint of a transformer or inductor's winding, or within the component of a resistor or potentiometer. These taps, found on inductors, can facilitate signal coupling and aren't strictly located at the halfway mark; they might be positioned closer to one end instead.

Features

  • Soft Iron Core.
  • 2A Current Drain
  • Center Tapped Transformer
  • Applications: On chassis AC/AC converter, Designing a battery Charger.
Specifications
Mounting Type Panel Mount
Type Transformer
Dimension 77x68x66mm
Voltage 12012 AL +01215V
Brand NSN
