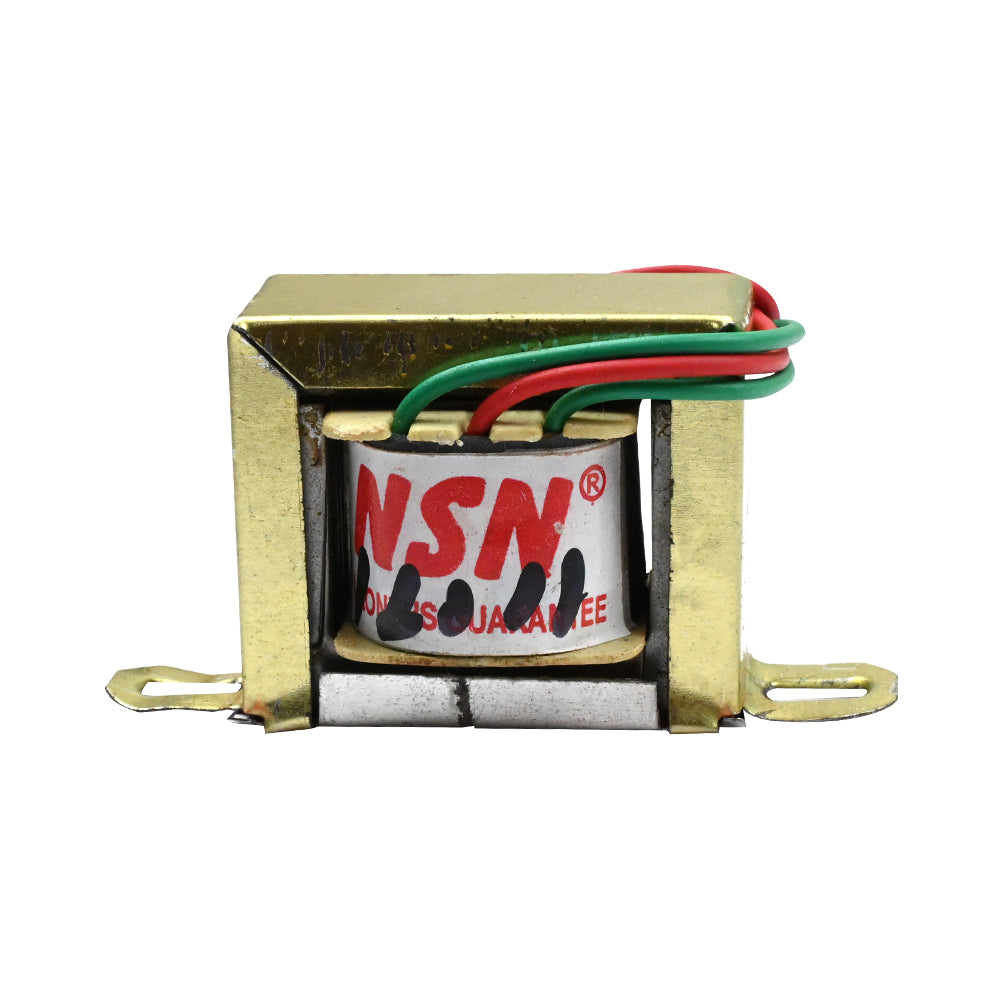

NSN 12-0-12V 500ma Center Tapped Step Down Transformer

Save 15%
Sold By: HatchnHackSKU: J04-33

Sale price₹ 49.00 Regular price₹ 57.82

Tax included Shipping calculated at checkout

Out of stock


12-0-12V 500mA Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The Transformer act as step down transformer reducing AC - 240V to AC - 12V. The Transformer is a center tapped transformer which gives two outputs of 12v, 12V and 0V. We can connect two 12v loads or one 24v load to the transformer. A center tapped transformer has equal winding in primary and secondary coil, which is mostly prefer to used in Rectification Circuit. Like in full wave rectifier, LED Driver, SMPS, UPS DC motor Driver.


  • Soft Iron Core.
  • 500mA Current Drain
  • Center Tapped Transformer
  • Applications: On chassis AC/AC converter, Designing a battery Charger.
Model 12/2022
Frequency 50/60Hz
Output Current 500mA
Mounting Type Panel Mount
Type Center Tapped Transfer
Core Type Soft Iron Core
Dimension 40x34x29mm
Voltage 12-0-12V
Brand NSN
