Description

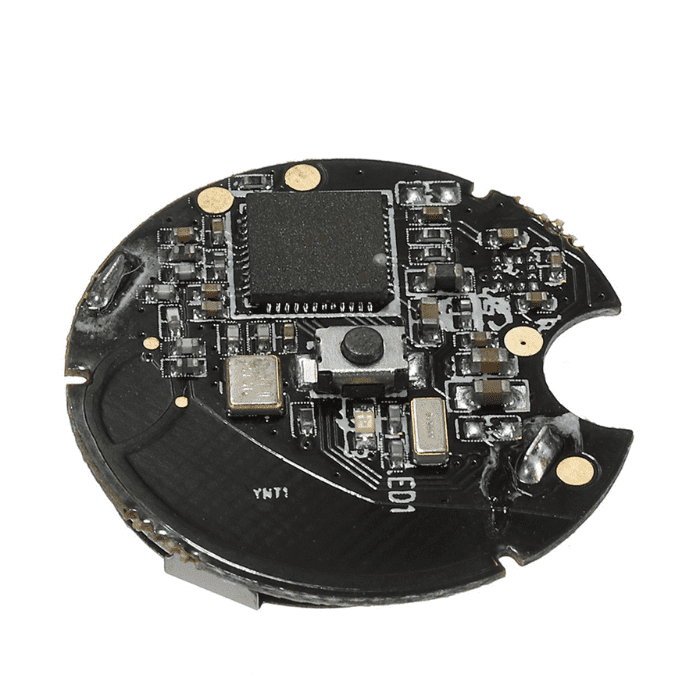

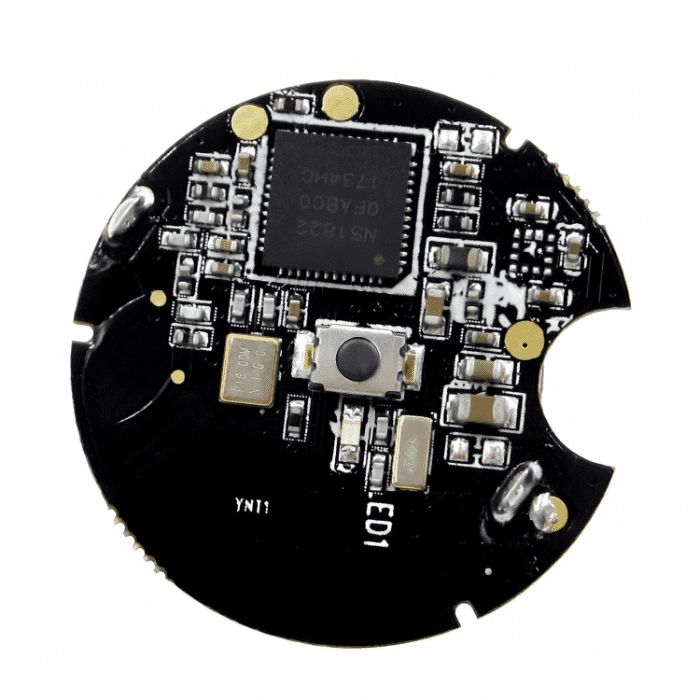

NRF51822 Ibeacon Wireless Bluetooth Module
The NRF51822 iBeacon Wireless Bluetooth Module is a low-power, multi-protocol wireless system-on-chip (SoC) that is designed for Bluetooth low energy and 2.4GHz ultra-low-power wireless applications. This module is ideal for commercial advertising and indoor location-based services due to its accurate hardware and robust firmware. This NRF is a general-purpose, ultra-low power SoC that is ideally suited for Bluetooth Low Energy and 2.4 GHz proprietary wireless applications. This module is based on Nordic's high-performance wireless SOC chip NRF51822 and is a complete low-cost, low-power design for Bluetooth low-energy applications.
The NRF51822 module is ultra-compact at 20mm diameter and can run from CR1632 coin-cell batteries, making it an ideal solution for wearable devices, IoT sensors, and other battery-operated devices. The NRF51822 is a multiprotocol SoC with Bluetooth Low Energy (BLE) and a 2.4GHz transceiver that supports both chip solutions and module solutions. If you're interested in programming the NRF51822 iBeacon module, note that Core Bluetooth is a fairly low-level framework and not very easy to learn.
Applications:
- Indoor navigation
- Mobile payment
- In-store shopping guide
- Flow analysis
Package Includes:
- 1 x NRF51822 Ibeacon Wireless Bluetooth Module
Specifications:
Operating Voltage | 2V to 3.6V |
Frequency | 2402~2480MHz |
Number of channels | 40 |
Emission current | 10.5mA |
Transmission rate | 1Mbps |
Dimensions | 25x25x4mm |
Weight | 4g |
