Description

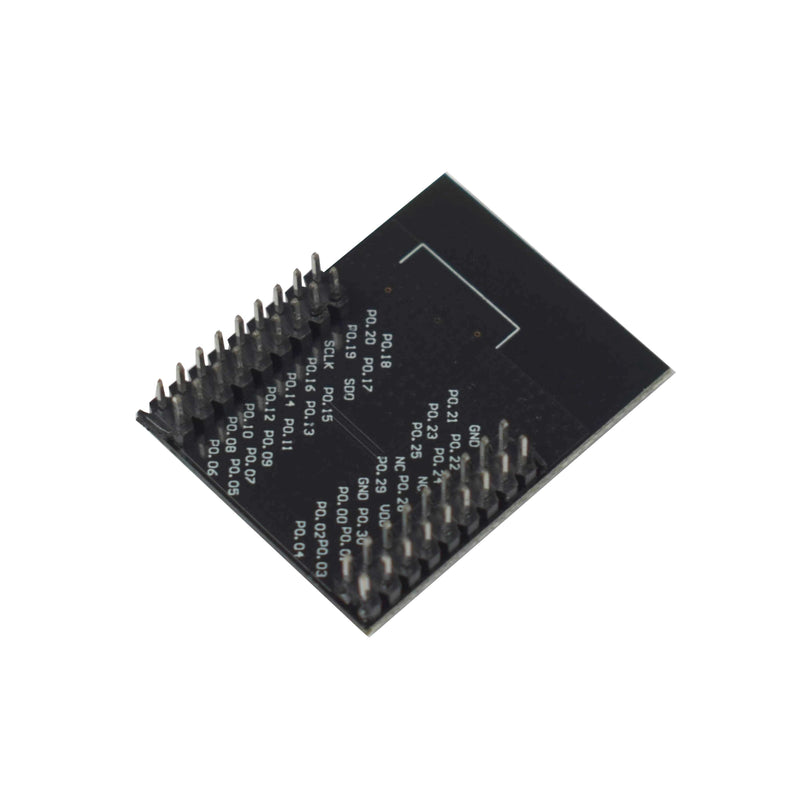

The Core51822 is a Bluetooth® 4.0 Low Energy/2.4GHz RF SoC-based wireless module designed for ULP (Ultra Low Power) wireless applications. If you have a custom PCB design and want to add some Bluetooth Low Energy, this module is small and simple to use.
Features
- Low energy
- 128-bit AES hardware encryption
- 8-bit ADC
Applications
- Wearable devices
- Mobile phone accessories
- RFID labels
- Industrial control
- Home appliances
Specification
| Model | NRF51822 |
| Version | Bluetooth V4.0 |
| Operating Voltage | 1.8 to 3.6V |
| Operating Temperature | -40°C~+85°C |
| Dimension | 25mm*32mm |
| Pinhead Pitch | 2.0mm |
| Frequency Range | 2.4GHz |
| Country of Origin | China |
