- 1 x 3.3V Adapter Board for 24L01 Wireless Module
Specifications
| On-board chip | AMS1117-3.3 |
| Input Voltage | 5V DC |
| Output Voltage | 1.9~3.6 DC |
| Operating Current | 12 mA |
| Dimensions | 26 x 19 x 12mm |
| Weight | 5 grams |
Description

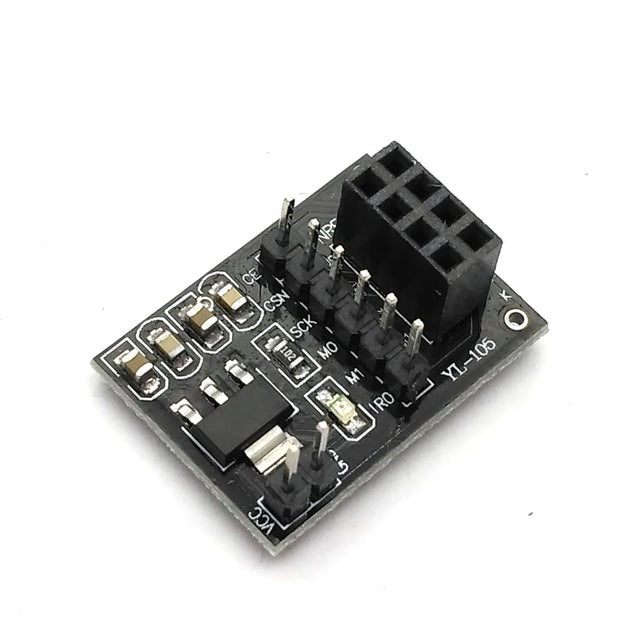

NRF24L01 Adapter Board
With the 3.3V VCC Adapter Board, you can utilize NRF24l01 type transceivers on 5V systems, such as Arduino. It functions by regulating the 3.3V input to 1.9~3.6V DC and includes bypass capacitors for dependable operation.
This adapter board is particularly designed to work with the NRF24L01 transceiver module and features the Enhanced ShockBurst (ESB) protocol. It supports two-way data packet communication with packet buffering, packet acknowledgement, and automatic re-transmission of lost packets.
Features
- It can be used with NRF24L01 wireless module
- Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
- Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
- Allows for easy connection to nRF24L01+ modules
- Small power on SMD LED indicator
- On-Board Voltage Regulator:
- Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
- Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)
