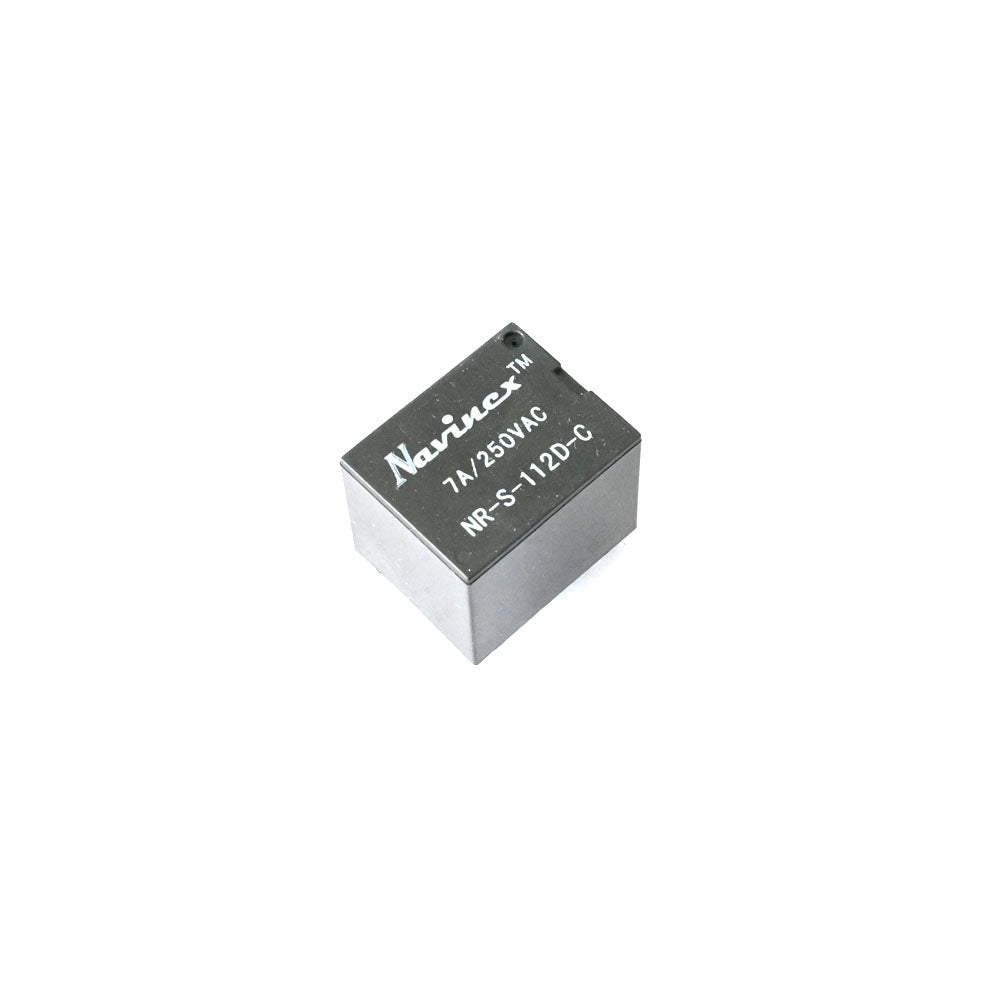

It's a general-purpose Relay 12V DC. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
|Type||Mount SPDT Relay|
|Operating Voltage||12V DC|
|DC Coil Operating Voltage||120V DC/ 12A
|AC Coil Operating Voltage
||250V AC/ 7A
|Mounting Type||Through Hole|
|Size (L,W,H)||19 x 15 x 15 mm|
|No. of Terminals||5 Pin|
