Nokia 5110 Screen 84x48 LCD Display Module SPI interface

Save 19%
Sold By: HatchnHackSKU: D18-53

Price:
Sale price₹ 193.00 Regular price₹ 239.00

Tax included Shipping calculated at checkout

Out of stock

Description

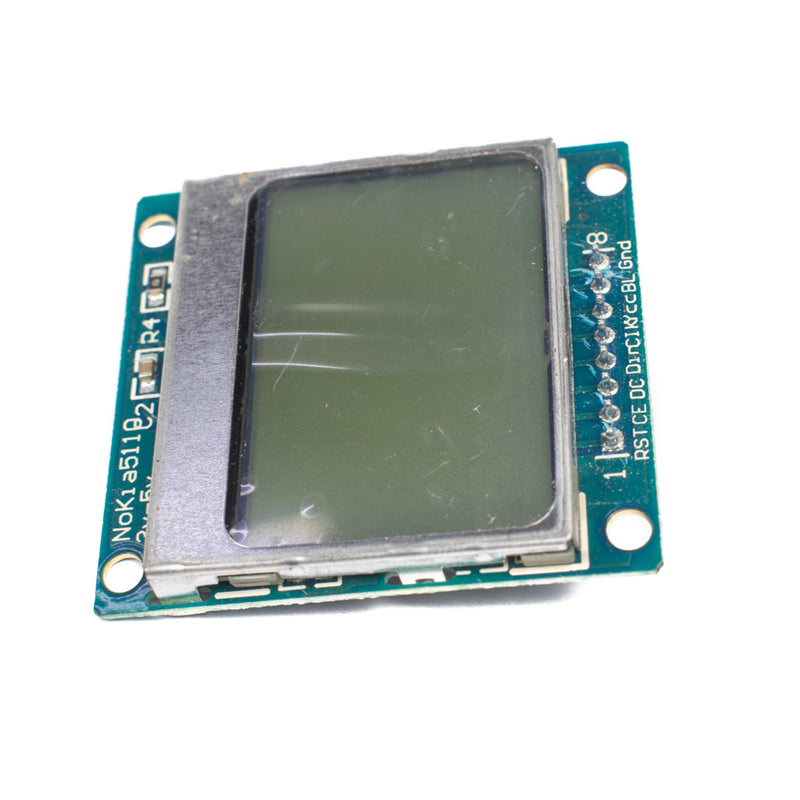

This is a monochrome LCD module comprised of 84x48 pixels that can be used to display rich graphic and text content. Though it's an industrial module, this lcd display is extremely easy to use. This module is a revision that accepts 3-5v input. So no extra level shifter is needed. To have full control, you just need 5 pins. and as a classic display module among open source

Features:

  • Consists of 48 rows and 84 columns (84×48) monochrome pixels
  • Works using the SPI interface
  • Consists of a Philips PCD8544 interface chip for easy interfacing
  • Can be easily interfaced with Arduino
  • Supports decent graphics of bitmap images
  • Available in Green and Blue Backlight
Specification
Columns x rows  84x48 monochrome pixels
Operating Voltage 2.7V to 3.3V
Current consumption 6mA
Interface SPI
Country of Origin China
