Description
The Newland NLS-FM3080 is a Fixed Mount Barcode Scanner. The FM3080 has a data port, four side mounting holes, and an IR Sensor in the scan window. This CPU-based scanner is equipped with Newland's sixth generation of UIMG Technology and excels at reading on-screen barcodes containing large amounts of data. Furthermore, compared to its predecessors, its ability to capture higher resolution images with an 800 * 800 pixels CMOS Sensor promises to take scanning performance to a new level.
Datasheet
Features:-
- High-Resolution CMOS
- IR/LIGHT Trigger
- IP65 Rated Sealing
- Snappy On-Screen Barcode Capture
- Multiple Colour Options for Good Read LED
- Step 1: Connect the scanner to a host with the cable. Then the scanner will be powered on.
- Step 2: Present the barcode on a mobile phone screen or paper to the centre of the scan window.
- Step 3: For a successful read, the scanner will beep
Specifications
| Brand | Newland |
| Model | NLS-FM3080 |
| Image Sensor | 800*800 CMOS |
| Interface | RS-232,USB |
| Operating Voltage | 5VDC (+-5%) |
| Product | Fixed Mount Barcode Scanner |
| Type |
Barcode Scanner |
| Illumination | White LED |
| Scan Window | 50*50 (mm) |

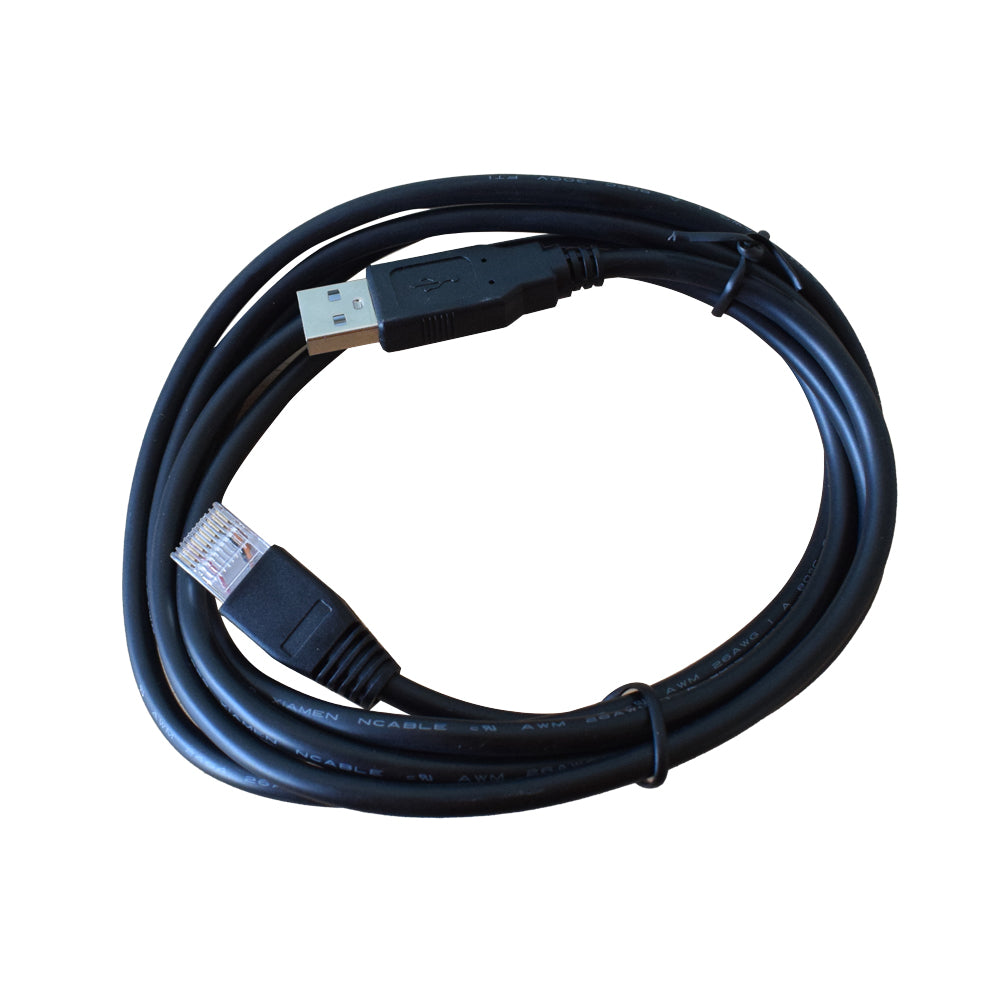

| Accessories |
USB Cable |
| Category | Industrial Automation and Control |
| Sensor Type |
CMOS |
| Cable Length |
1.8 Meter |
| Dimensions (L*W*D) |
67.5*78.3*47.5 |
| Origin | Made in PRC |
| Country of Origin | China |
