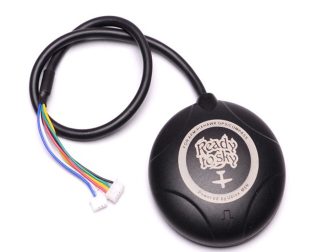

NEO-M8N High Precision GPS Module with Built-in Compass for APM and PIXHAWK FC is the new Neo-M8N GPS module that includes an HMC5883L digital compass. This module has a high level of sensitivity and features active circuitry for the ceramic patch antenna. It also comes enclosed in a plastic case to protect the module from the elements. This module outputs precise position updates at 10Hz and also has a rechargeable backup battery for warm starts. The NEO-M8N is configured to run at a baud rate of 38400 and can be used with Pixhawk and APM (you might need to modify the cable to fit your autopilot board).
NEO-M8N GPS Module for APM2.52 Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.
This module also comes with a circular mounting pad.
Note:
- When the GPS modules have power, the blue LED will flash for a second (probably less than a full second). It will then flash constantly once it has a position lock.
- This module comes with a genuine chip that enables you to update the firmware* and change the configuration via U-Center. However, if you do not need this functionality.
- Due to the flash memory of this specific module, you cannot update the V3.01 firmware as the firmware file is too big.
- This is a product of ReadyToSky brand powered by chip inside
- This module comes with 5 pin connectors connected by default (i.e.Ready to connect to APM FC) and an extra 6 pin connector for PIXHAWK FC for Swapping.
Connector difference of PIXHAWK and APM FC:
Watch the video to know how to swap the connectors.
How to interface the GPS module with Raspberry Pi and Arduino?
Hookup guide Click here!
Features :
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
- SBAS L1 C/A: WAAS, EGNOS, MSAS.
- Galileo-ready E1B/C (NEO-M8N).
- Nav. update rate1 Single GNSS: up to 18 HZ.
- Assistance AssistNow GNSS Online.
- Assist Now GNSS Offline (up to 35 days)3.
- Assist Now Autonomous (up to 6 days).
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q).
- Crystal (NEO-M8M).
- RTC crystal Built-In.
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
- lowest noise figure (NEO-M8N/Q).
- Anti-jamming Active CW detection and removal.
- An extra onboard SAW bandpass filter (NEO-M8N/Q).
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
- Supported antennas Active and passive.
- Odometer Travelled distance.
- Data-logger For position, velocity, and time (NEO-M8N).
