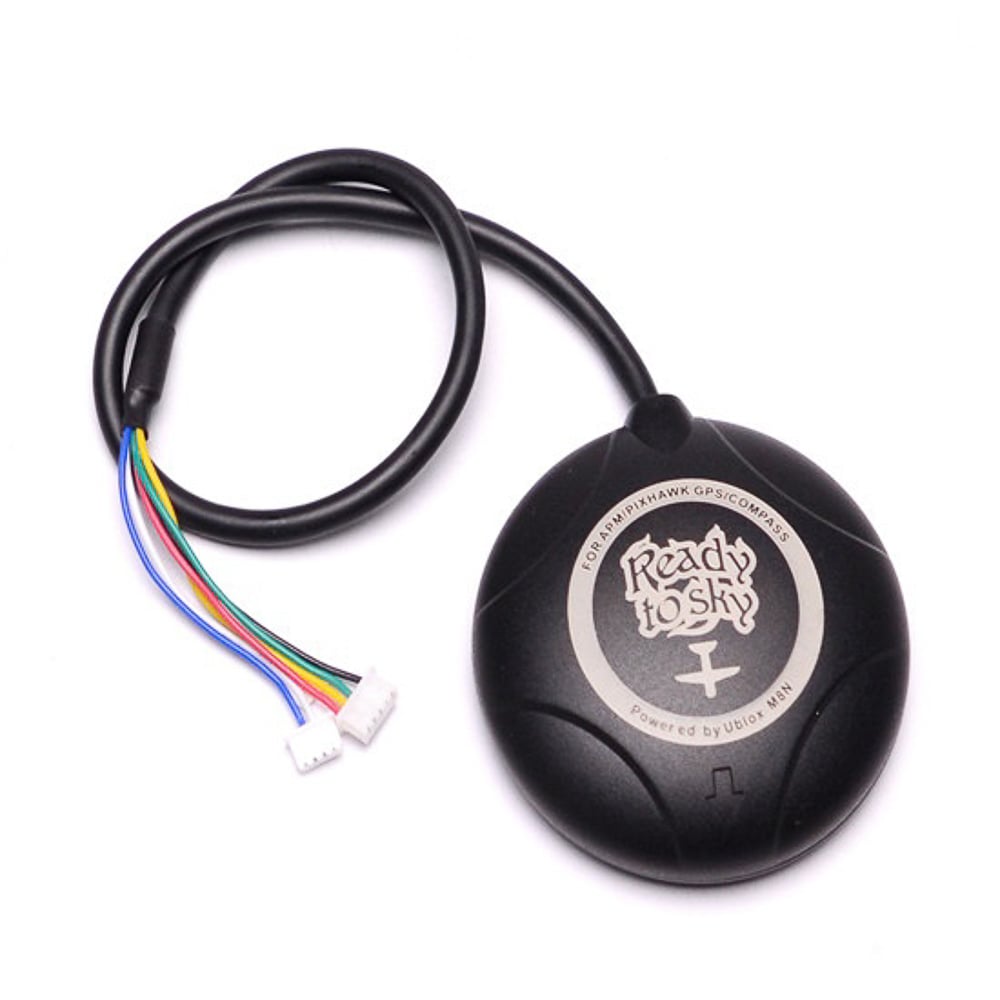

Description
- Ready to Connect to PIXHAWK FC with 6-pin connector Attached
- Receiver type 72-channel M8 engine
- Galileo-ready E1B/C (NEO-M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Acquisition Cold starts: 26 s
- Onboard Compass
| Model |
Ublox NEO-M8N |
|---|---|
| Receiver Type |
72-channel Ublox M8 engine. |
| Main Chip |
Ublox NEO-M8N |
| Input Supply Voltage (VDC) |
0.5 ~ 3.6 |
| Sensitivity (dBm) |
Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) |
2, 2.5 |
| Acceleration (g) |
<4 |
| Navigation Update Rate |
up to 18 HZ. |
| Operating Temperature (°C): |
-45 to 105 |
| Tracking Sensitivity (dBm) |
-161 dBm |
| Co-Ordinate System |
WGS-84 |
| Capture Time |
0.1s Average |
| Avg Cold Start Time (s) |
30 |
| Warm Start Time (s) |
1 |
| Boot Time |
1S |
| Maximum Altitude (m) |
18000 |
| Dimensions (mm) LxWxH |
54 x 22 (Dia x W) |
| Weight (g): |
23 |
| Cable Length (cm) |
20 |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 7 × 6 × 6 cm |
