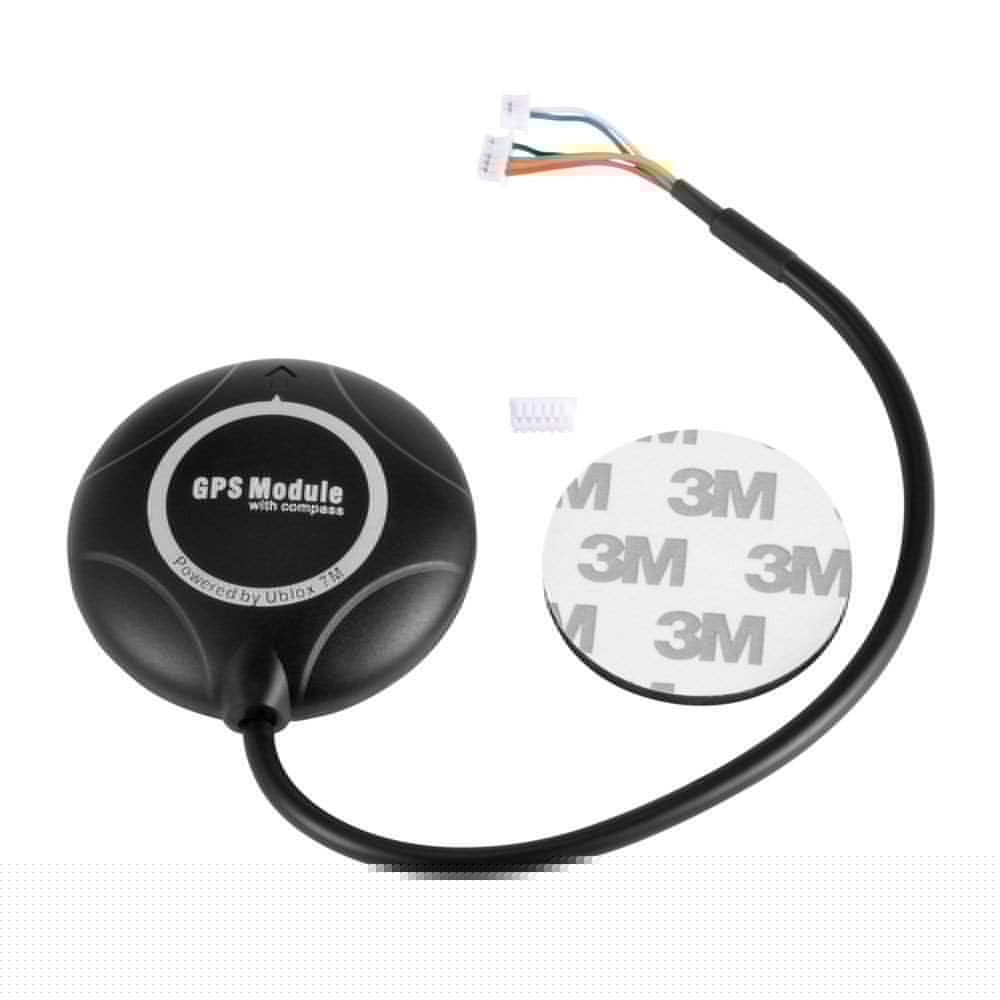

Description
- Tracking sensitivity: 161 dBm
- Capture sensitivity : 148 dBm
- cold start time: 38s average
- Warm start time: 35s average
- hot start time: 1s average
- Capture time: 0.1s Average
| Model |
Ublox NEO 7M |
|---|---|
| Receiver Type |
56 Channels, Galileo E1B/C1, GPS L1C/A, QZSS L1C/A, SBAS L1C/A |
| Receiver Frequency |
L1 [1575.42MHz] |
| Input Supply Voltage (VDC) |
3.5 ~ 5.5 |
| Main Chip |
U-BLOX NEO-7M |
| Sensitivity (dBm) |
-155, -160, Cold Start (without aiding): -147 dBm, Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) |
2, 2.5 |
| Acceleration (g) |
<4 |
| Navigation Update Rate |
5Hz |
| Operating Temperature (°C): |
-24 to 84 |
| Tracking Sensitivity (dBm) |
-161 dBm |
| Co-Ordinate System |
WGS-84 |
| Capture Time |
0.1s Average |
| Avg Cold Start Time (s) |
38 |
| Warm Start Time (s) |
35 |
| Boot Time |
1S |
| Maximum Altitude (m) |
18000 |
| Maximum Speed |
515 m/s |
| Dimensions (mm) LxWxH |
60 x 11.5 (DxH) |
| Weight (g): |
26 |
| Cable Length (cm) |
20 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 8 × 5 cm |
