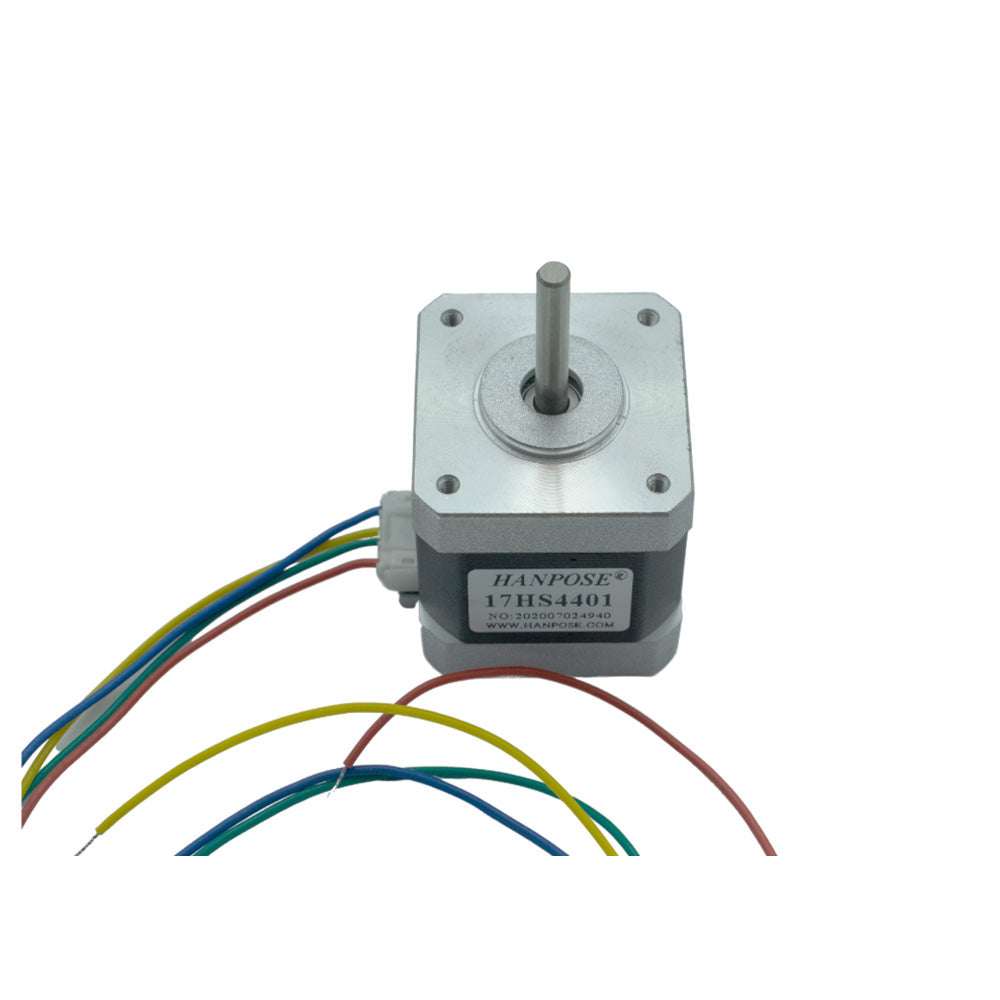

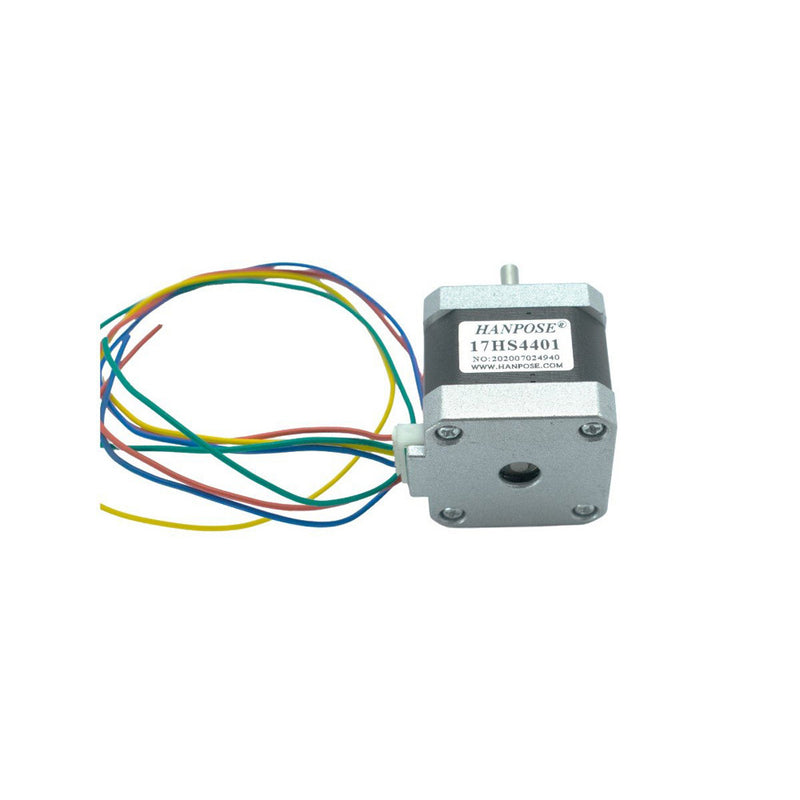

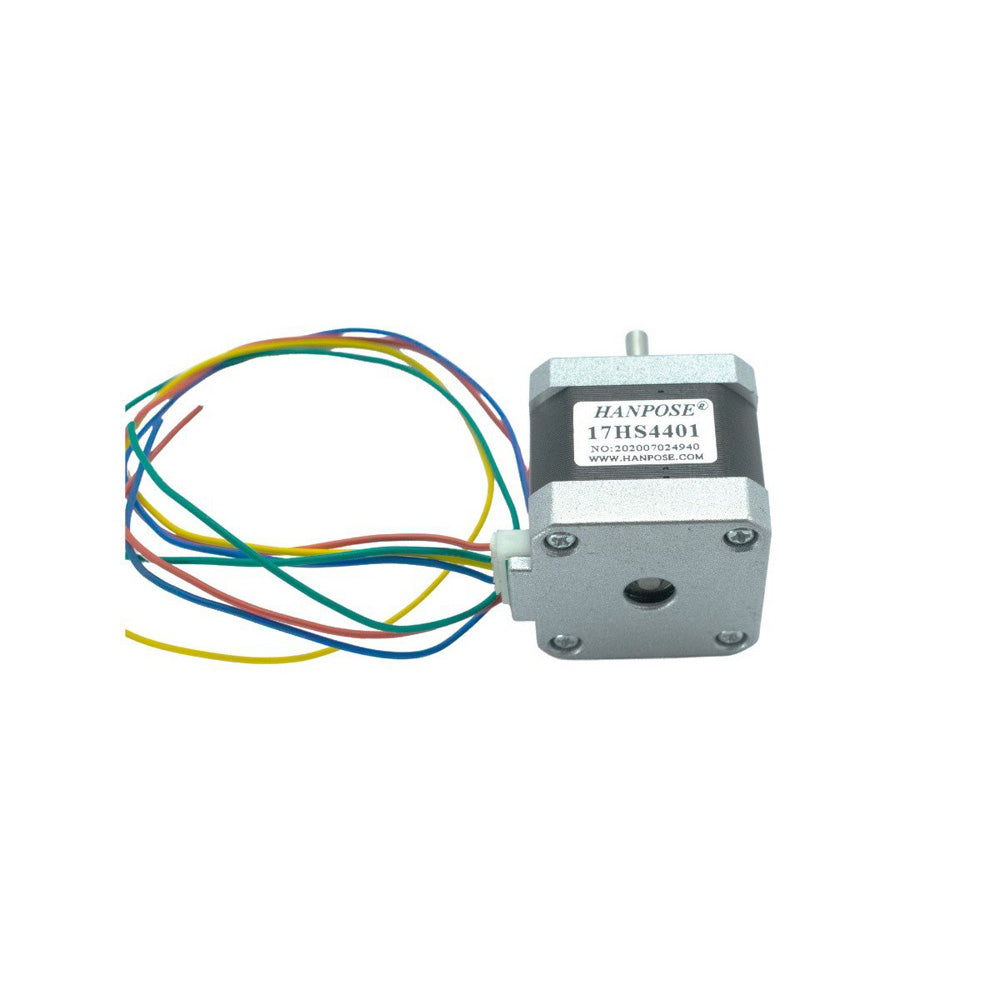

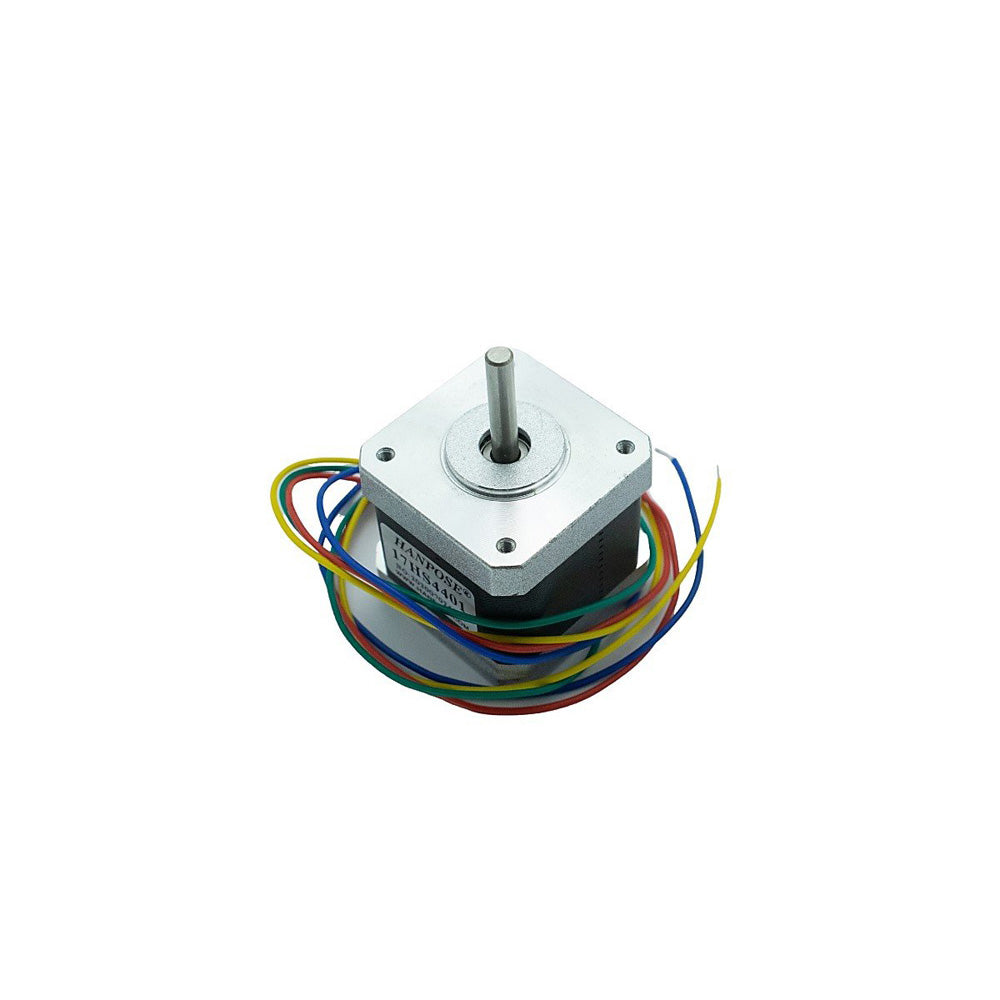

NEMA 17 4 Kg-cm Bipolar Stepper Motor (17HS4401)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

NEMA 17 4 Kg-cm Bipolar Stepper Motor (17HS4401)

In Stock - SKU: 5D23

699.00
[ ₹ 592.37 + ₹ 106.63 (18% GST) ]
  • Model: 17HS4401
  • Rated Current: 1.7A
  • Rated Voltage: 3.2V
  • Holding Torque: 40N.cm
  • Step Angle: 1.8°
  • Order within

A stepper motor is a motor that takes one step at a time and moves in discrete steps. It is commonly used in applications requiring precise position control, such as 3D printers, laser cutters, and pick-and-place machines. This NEMA 17HS4401 bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a holding torque of 40N.cm (56oz.in).

As the stepper motor draws a high current, instead of controlling it directly using H-bridges, use an appropriately powerful stepper motor driver. To know how to make this motor rotate we should look into the coil diagram below.

 Drive unipolar stepper motors as bipolar stepper motors with a simple  wiring reconfiguration - Analog - Technical articles - TI E2E support forums

As you can see from the above diagram this motor has four wires in different colours. This motor can be made to rotate only if the coils are energized in a logical sequence. This logical sequence can be programmed using a microcontroller by designing a digital circuit.

Specification
Model 17HS4401
Rated Current/Phase 1.7A
Rated Voltage 3.2V
Holding Torque 40N.cm
Step Angle 1.8°
Steps per Revolution 200
Rotor Inertia

54gcm²

Shaft Diameter 5mm
Shaft Length 22mm
Size 42mmx42mmx40mm
No. of Phases 2
Motor Length
2.48 inch
Motor Leads 4



A stepper motor is a motor that takes one step at a time and moves in discrete steps. It is commonly used in applications requiring precise position control, such as 3D printers, laser cutters, and pick-and-place machines. This NEMA 17HS4401 bipolar stepper motor has a 1.8° step angle (200 steps/revolution) and a holding torque of 40N.cm (56oz.in).

As the stepper motor draws a high current, instead of controlling it directly using H-bridges, use an appropriately powerful stepper motor driver. To know how to make this motor rotate we should look into the coil diagram below.

 Drive unipolar stepper motors as bipolar stepper motors with a simple  wiring reconfiguration - Analog - Technical articles - TI E2E support forums

As you can see from the above diagram this motor has four wires in different colours. This motor can be made to rotate only if the coils are energized in a logical sequence. This logical sequence can be programmed using a microcontroller by designing a digital circuit.

Model 17HS4401
Rated Current/Phase 1.7A
Rated Voltage 3.2V
Holding Torque 40N.cm
Step Angle 1.8°
Steps per Revolution 200
Rotor Inertia

54gcm²

Shaft Diameter 5mm
Shaft Length 22mm
Size 42mmx42mmx40mm
No. of Phases 2
Motor Length
2.48 inch
Motor Leads 4
