Description

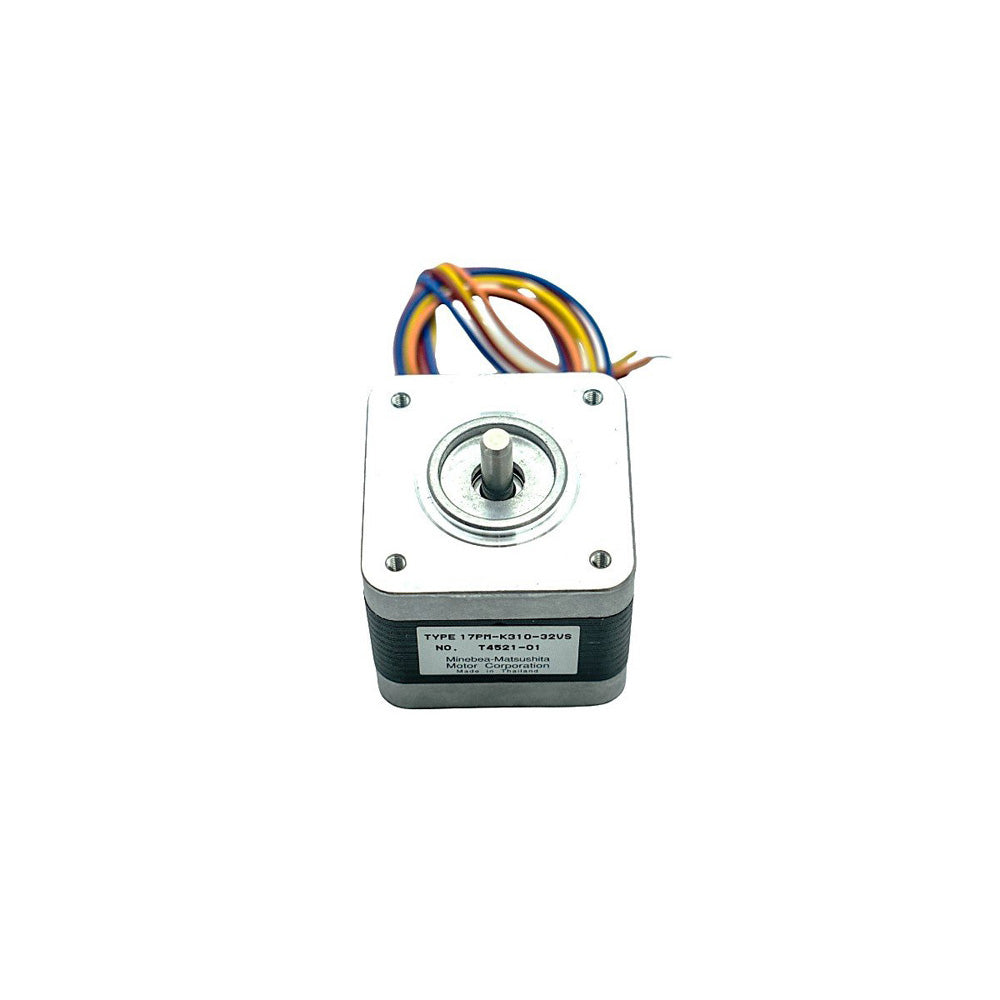

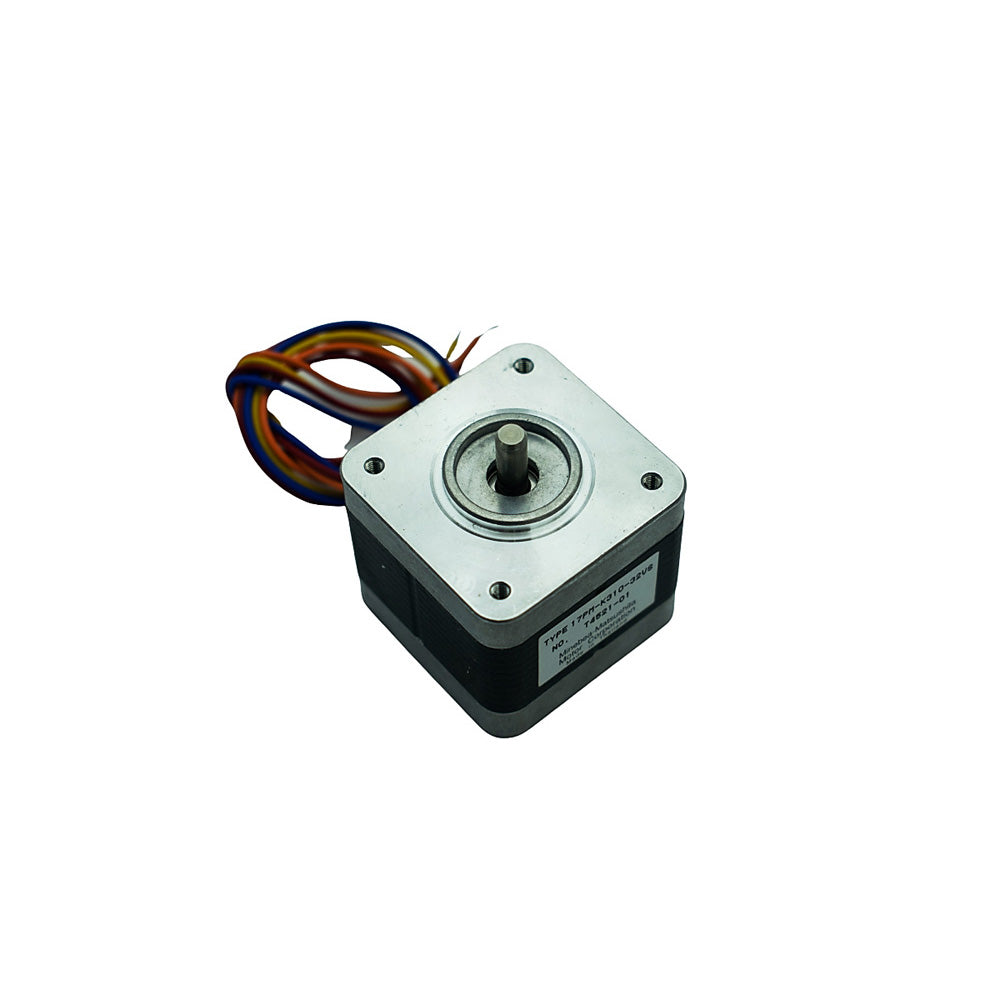

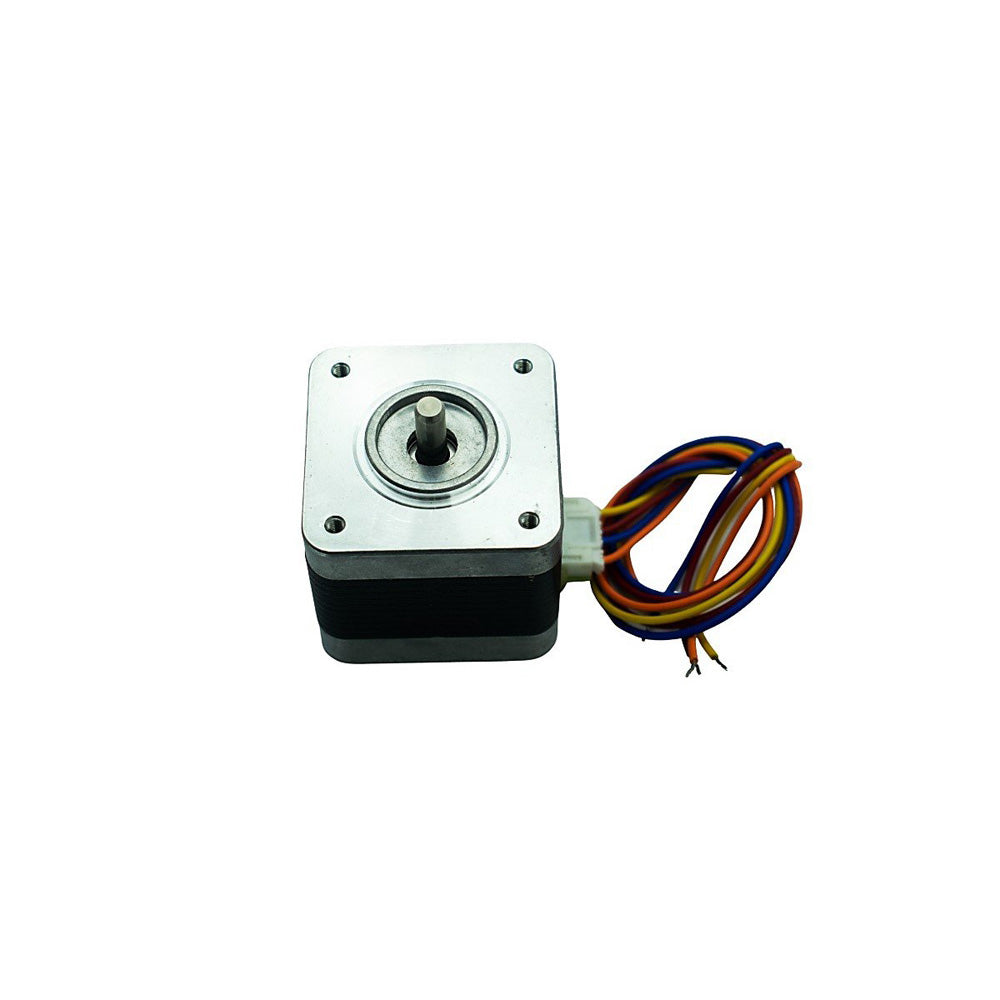

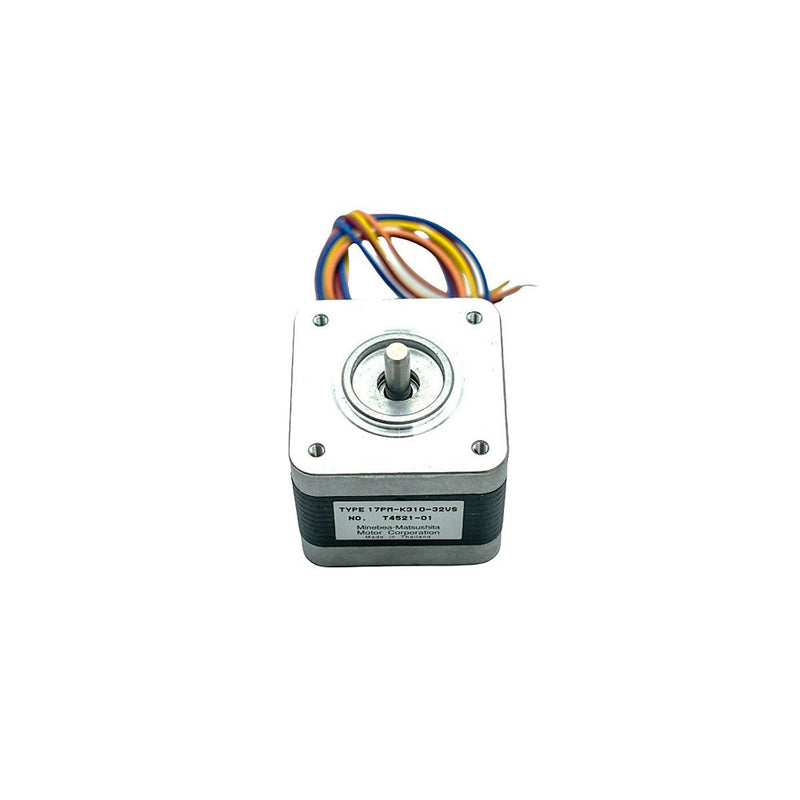

NEMA17 2.5 Kg-cm Stepper Motor for high torque applications. Ideal Motor for ATM machines, 3D printers, Peristaltic pumps, and job positioning and rotating applications.
Single side JST Connectors are provided with the motor.
Features:
Single side JST Connectors are provided with the motor.
Features:
- Torque: 2.5 kg-cm
- Current/Phase: 1.5A
- Operating Voltage (VDC): 12 ~ 24 VDC
- Step Angle: 1. 8 deg/step
- Shaft Type: Round
- Shaft Diameter: 5mm
- Shaft Length: 7mm
Specifications
Torque | 2.5 kg-cm |
Step Angle | 1. 8 deg/step |
Current/Phase | 1.5A |
Rated Voltage | 12-24 VDC |
Number of Phases | 2 |
Shaft Type | Round |
Shaft Diameter | 5mm |
Shaft Length | 7mm |
Motor Body Dimension (LxWxH) | 42x42x27 (mm) |
Country of Origin | China |
