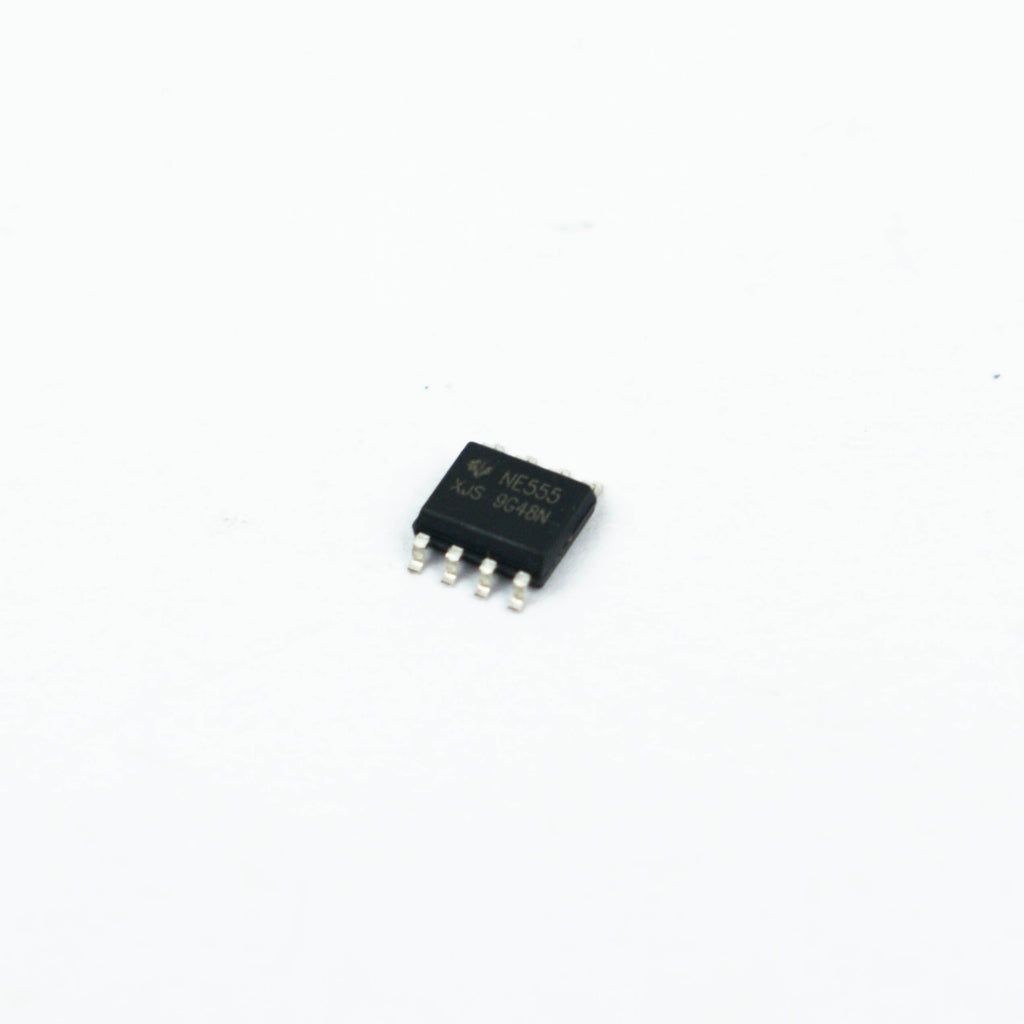

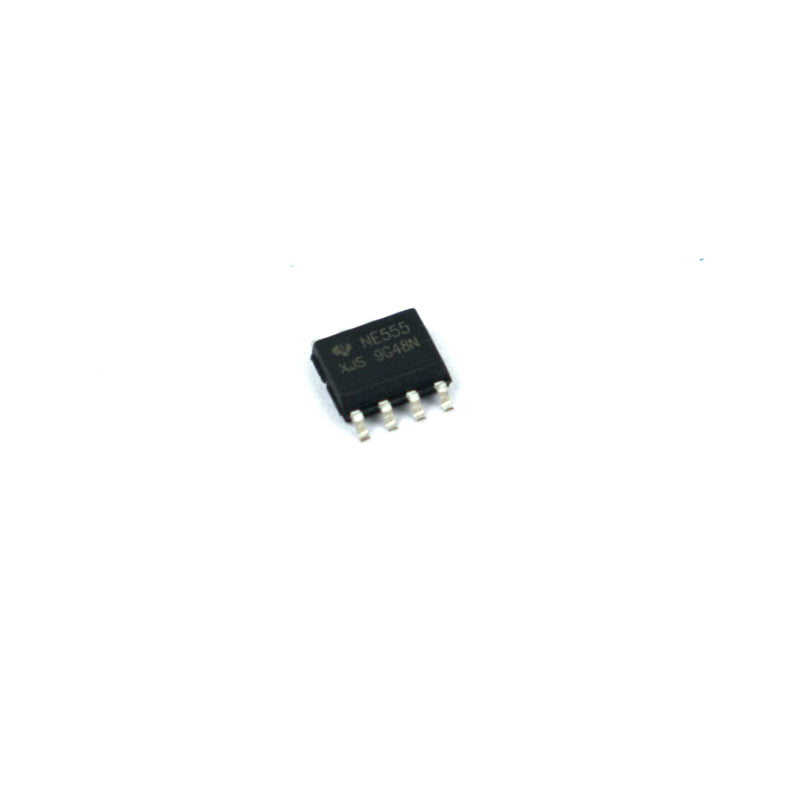

Description
The NE555 Precision Timer ICs are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.
Features
- Timing from Microseconds to Hours
- Astable or Monostable Operation
- These devices are precision timing circuits capable of producing accurate time delays or oscillation
- Delay Timing from microseconds to hours
- Adjustable duty cyclist-compatible output can sink or source up to 200 ma
- Astable or Monostable operation
- Adjustable Duty Cycle
Applications
- Fingerprint Biometrics
- Iris Biometrics
- RFID Reader
Specifications
| Model | NE555 |
| Brand | Texas Instruments |
| Type | Precision Timers IC |
| Supply voltage | 18V |
| Output Current | 200 mA |
| Pins | 8 |
| Package Type | SMD |
| Storage Temperature range | –65°C ~150°C |
| Country of Origin | China |
