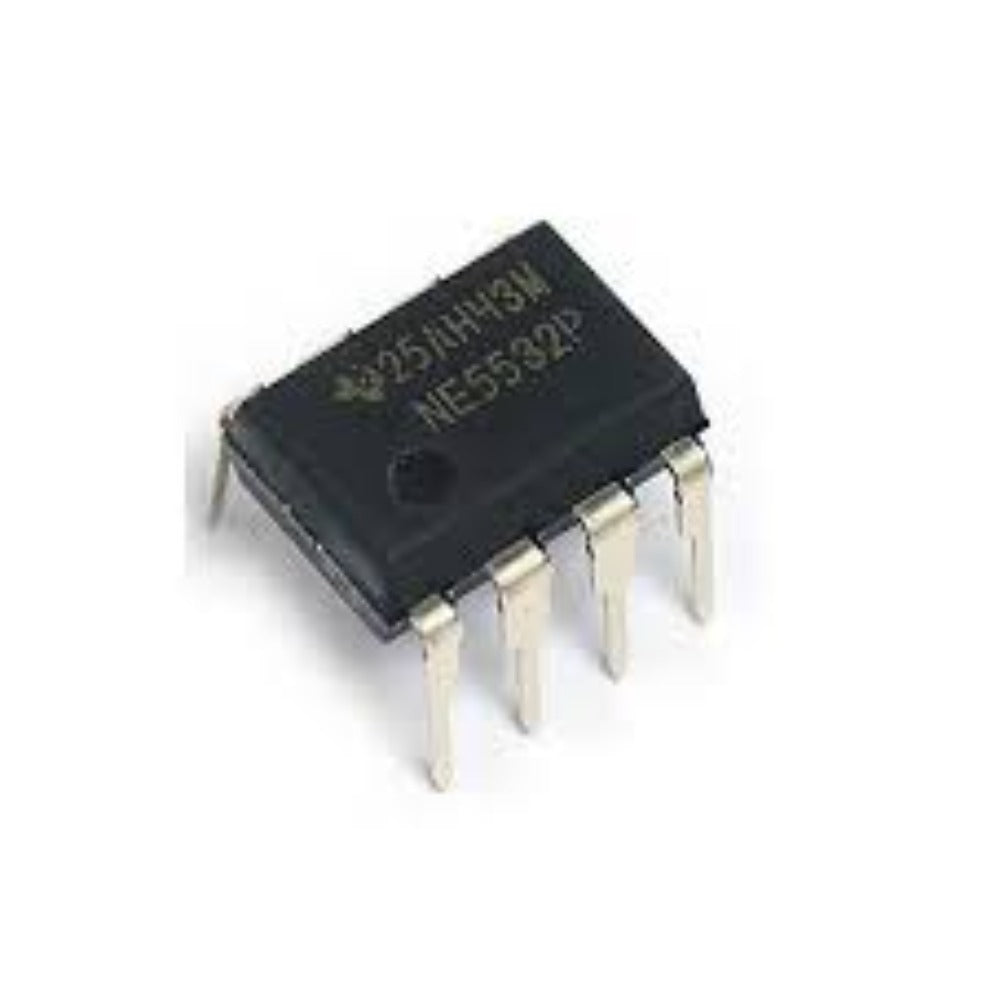

NE5532 Operational Amplifier IC

Save 19%
Sold By: HatchnHackSKU: D18-34

Sale price₹ 13.00 Regular price₹ 16.00

Tax included Shipping calculated at checkout

Out of stock


The NE5532 operational amplifiers are high-performance devices with good DC and AC characteristics. Low noise, high output drive capacity, high unity-gain, and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection are all features. Internally, these operational amplifiers are calibrated to operate at unity gain. Maximum equivalent input noise voltage restrictions have been set for these devices.


  • Equivalent Input Noise Voltage:
  • 5 nV/√Hz Typ at 1 kHz
  • Common-Mode Rejection Ratio: 100 dB Typ
  • High DC Voltage Gain: 100 V/mV Typ
  • Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
  • High Slew Rate: 9 V/μs Type
Unity-Gain Bandwidth 10 MHz Typ
Number of channels 2
supply voltage (Max) 10V
No. of pins 8
Package PDIP
GBW (Typ) 10Mhz
Output Current 38mA
Slew rate (Typ) 9V/us
Operating temperature range 0 to 70 degrees C
Dimensions(L*B*H)  9.3mm x 8.4mm x 3.4mm
Country of Origin China
