Description

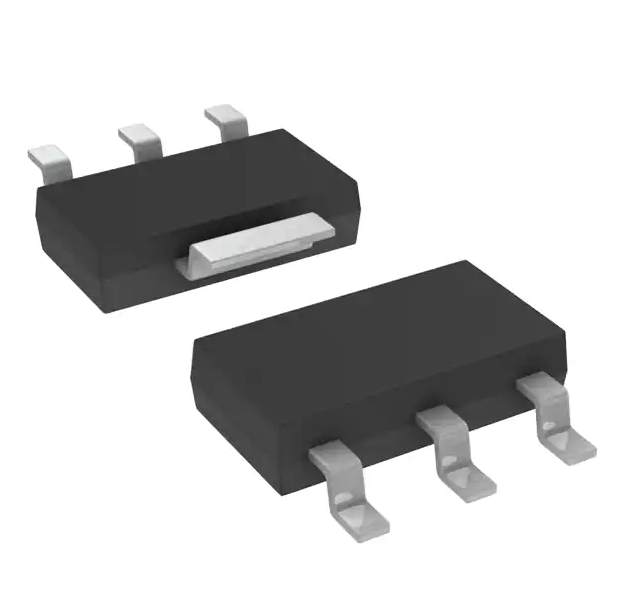

NCV8452STT3G Self Protected High Side Driver SMD IC SOT-223 Package is a completely protected High−Side driver that can be used to switch wide circuits‚ like bulbs‚ solenoids and other activators. The gadget is inside safeguarded from an overload condition by a functioning current breaking point and warm closure. The NCV8452STT3G is suitable for a variety of applications that require high-side switching and protection features. It can be used in automotive systems, industrial control systems, power distribution, motor control, and other applications where controlling high-side loads is necessary while providing protection against faults such as overcurrent, overtemperature, and short circuits.
Features:
-
Short Circuit Protection
-
Thermal Shutdown with Automatic Restart
-
CMOS (3 V/5 V) Compatible Control Input
-
Overvoltage Protection and Shutdown
-
Output Voltage Clamp for Inductive Switching
| Specifications | |
|---|---|
| Forwar Voltage | 5-34V |
| Model | NCV8452STT3G |
| Package | SOT-223 |
| Power Dissipation | 1.76W |
| Mounting Type | SMD |
| Output Current | Internally Limited |
| Operating Temperature | −40 to +150 |
| No of Pins | 3 |
| Type | Driver IC |
