Description

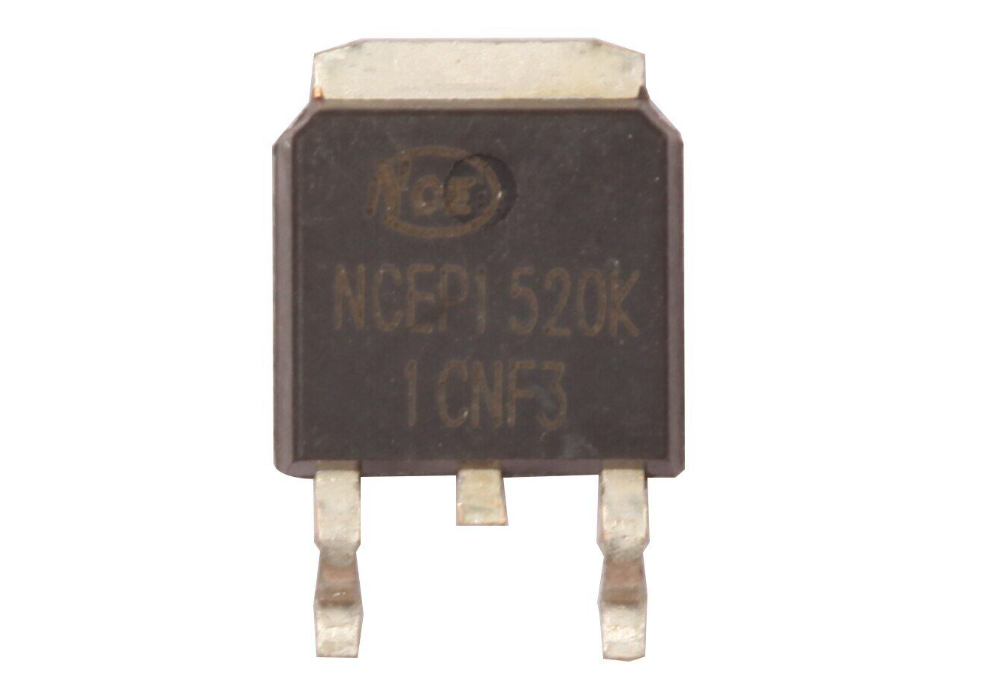

Its MOSFET NCEP1520K TO-252‚ The metal-oxide-semiconductor field-effect transistor (MOSFET‚ MOS-FET‚ or MOS FET) is a kind of field-effect transistor (FET) that is most typically made through controlled silicon oxidation. It features an insulated gate‚ the voltage of which affects the device's conductivity.
Features:
- Its Type of N channel MOSFET
- Its maximum power dissipation is 68W
- Its Maximum Drain-Source Voltage |Vds| 150V
- Its Maximum Gate-Source Voltage |Vgs|: 20 V
- Its Maximum Drain Current |Id|: 20 A
| Specifications | |
|---|---|
| RDS On Resistance | 0.065 Ohm |
| Part Number | NCEP1520K |
| Operating Temperature Range | 175 °C |
| Mounting Style | SMD |
| Power Dissipation | 68 W |
| Type | N-Channel MOSFET |
| Package | TO-252 |
