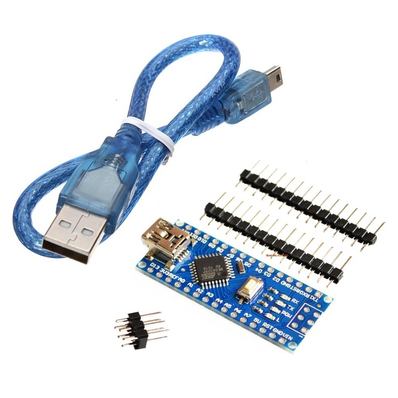

Description
- Operating Voltage (logic level): 5V
- With Mini USB
- 8 analog inputs ports: A0 ~ A7
- 14 Digital input / output ports: TX, RX, D2 ~ D13
- 1 pair of TTL level serial transceiver ports RX / TX
- Using Atmel Atmega328P-AU MCU
- There is a bootloader installed in it
- Standard 0.1” spacing DIP (breadboard friendly).
- Manual reset switch.
| Model Type |
Nano |
|---|---|
| Color: |
Blue |
| Microcontroller |
ATmega328 |
| Operating Voltage (VDC) |
5 |
| Input Voltage(Recommended) |
7-12 V |
| Power Consumption (Watt) |
1 |
| Analog I/O Pins |
8 |
| Digital I/O Pins |
22 |
| PWM Output Pins |
6 |
| Architecture |
AVR |
| Clock Speed |
16 MHz |
| DC Current per I/O Pin (mA) |
40 |
| Flash Memory |
32 KB |
| EEPROM |
1KB |
| SRAM |
2 |
| Dimensions (mm) LxWxH |
45x18x5 |
| Weight (g): |
8 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 6 × 5 × 3 cm |
