Description

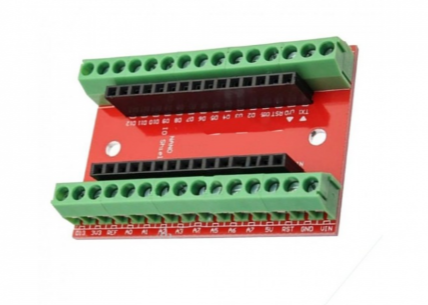

It's a NANO IO Shield Expansion Board For Arduino Screw Terminals. The NANO IO Shield is an expansion board specifically designed for Arduino Nano boards. It provides additional functionality and connectivity options to your Arduino projects. One of the key features of the NANO IO Shield is its screw terminals‚ which allow for easy and secure connection of wires. Screw terminals are commonly used in electronics to connect wires or components without the need for soldering. They consist of a metal terminal with a screw that can be tightened to secure the wire in place. The NANO IO Shield has multiple screw terminals‚ usually labeled with different names or designations‚ such as GND (ground)‚ VCC (power)‚ and I/O (input/output) pins. To use the NANO IO Shield with your Arduino Nano board‚ you simply attach the shield onto to Nano's header pins‚ ensuring that the pins are aligned correctly. Once connected‚ you can start using the screw terminals to make your connections.
Features
- Compatible with Arduino NANO
- All digital and analog pins breakout
- Compact size.
- Leads all pins out‚ convenient for wiring and doing experiments.
- Dimensions: 53 x 36 x 12 (LxWxH) mm.
| Specifications | |
|---|---|
| Dimension | 53 x 36 x 12 |
| Type | NANO IO Shield Expansion Board |
| No. of Pins | 30 |
