Description

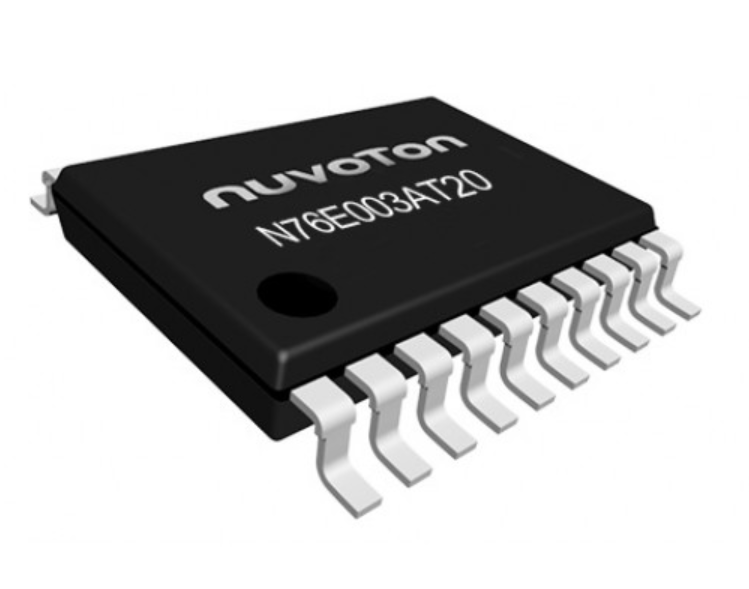

The N76E003 is an installed streak type‚ 8-digit superior execution 1T 8051-based microcontroller. The instruction set is enhanced in performance and fully compatible with the standard 80C51. The N76E003 contains an up to 18K Bytes of the primary Glimmer called APROM‚ in which the items in Client Code dwells. On-chip firmware updates are made possible by the In-Application-Programming (IAP) function that is supported by the N76E003 Flash. Any User Code array block that is written to by IAP and read by IAP or MOVC instructions can be set up as non-volatile data storage thanks to IAP. The Boot Code typically lives in an additional Flash known as LDROM‚ which is used for In-System Programming (ISP). The LDROM size is configurable with a limit of 4K Bytes. To work with programming and confirmation‚ the Blaze permits being modified and perused electronically by equal Author or In-Circuit-Programming (ICP). The user can lock the code for security once the code is confirmed.
Features:
- It has UARTs SPI‚ I2C which is used for the interface means which make communication between I/O devices
- Its package is SOP-20
- Its mounting style is SMD
- It has an internal microcontroller its value is 16MHz
| Specifications | |
|---|---|
| Package | TSSOP-20 |
| Operating Temperature Range | -10 to 60 |
| Operating Voltage | 5.5V |
| Model | N76E003AT20 |
| No. of Pins | 20 |
| Processor | 8051 |
| Mounting Type | SMD |
| Clock Frequency | 16MHz |
| Type | Microcontroller |
