Description

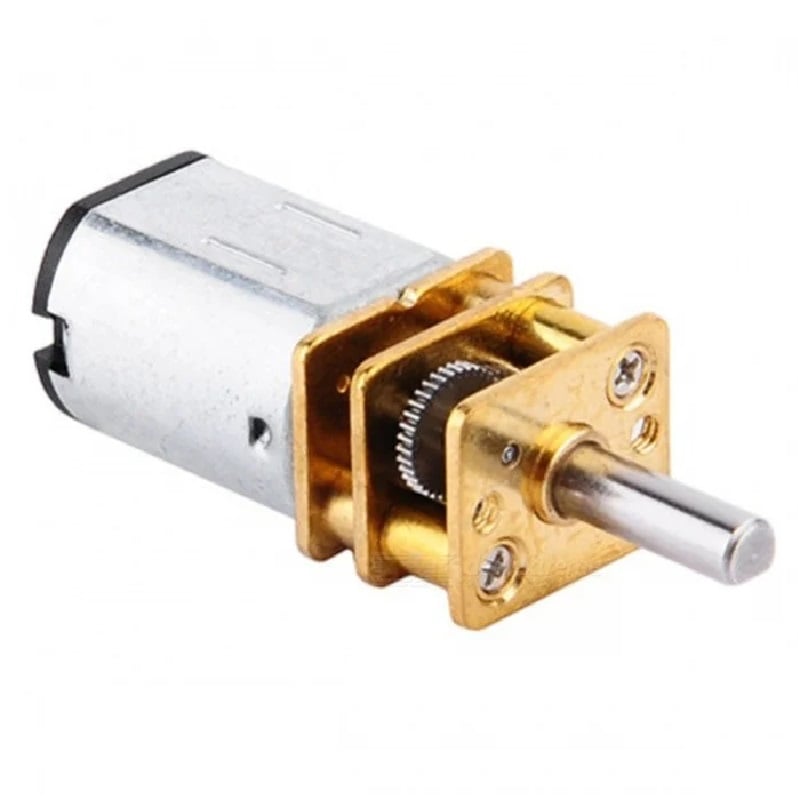

- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motor’s output shaft.
| Stall Current (A) |
0.67 |
|---|---|
| Rated Torque(kg-cm) |
0.14 |
| Stall Torque(Kg-Cm) |
0.54 |
| Motor Body Size (Diameter) (mm) |
12 |
| Operating Voltage (VDC) |
3 ~ 6 |
| Rated Operating Voltage (VDC) |
6 |
| No load Speed (RPM) |
600 |
| Rated Speed (RPM) |
600 |
| Shaft Type |
D-type, Single Side |
| Shaft Diameter (mm) |
3 |
| Weight (g): |
12 |
| Output Axial Length (mm) |
10 |
| Fuselage w/o Shaft Length |
26 |
| Screw Size |
M3 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
