Description

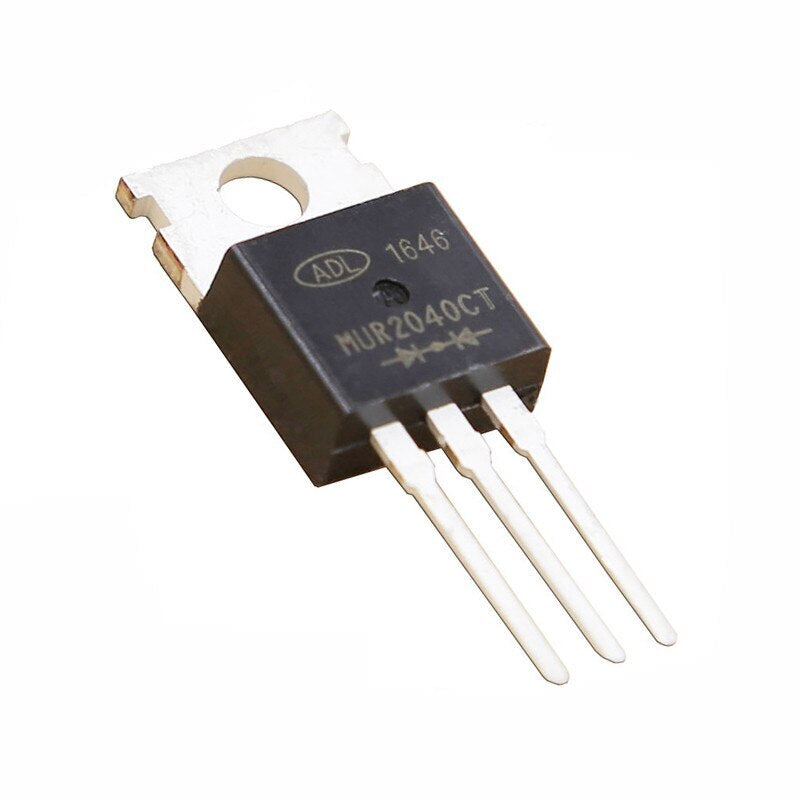

MUR2040 is a Fast Recovery Diode with a short reverse recovery time. As MUR2040 have a lower reverse recovery time than conventional diodes, they are better suited to high-frequency rectification applications. When voltage is applied in a reverse direction, the diode does not withstand voltage until it enters reverse bias. In reverse bias conditions, the current flow for a specific time. This time is known as Reverse Recovery Time (TRR).
Features
- Fast switching for high efficiency
- Low forward voltage drop
- Single rectifier construction
- High surge capability
- For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
Specification
| Model | MUR2040 |
| Type | Super Fast Rectifier |
| Package Type | TO220 |
| Maximum RMS voltage | 280 V |
| Maximum repetitive peak reverse voltage | 400V |
| Maximum DC blocking voltage | 400 V |
| Peak forward surge current | 20A |
| Max. Reverse Current | 200A |
| Country of Origin | China |
