Description

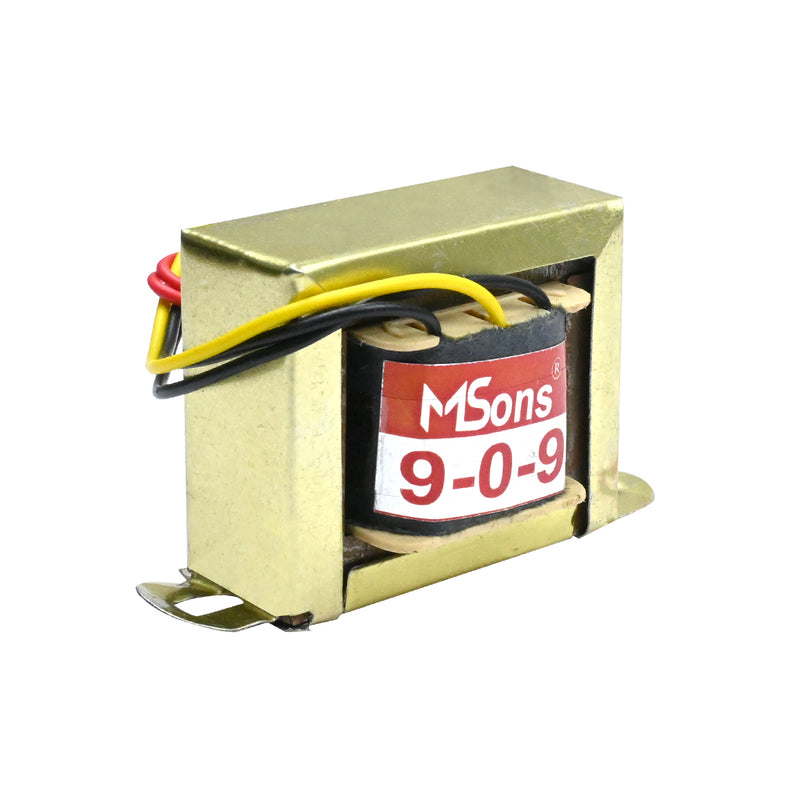

9-0-9 9V 750mA Step down Transformer is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The Transformer act as step down transformer reducing AC - 240V to AC - 9V. The Transformer is a center tapped transformer which gives two outputs of 9V, 9V and 0V. We can connect two 9V loads or one 18V load to the transformer.
Features
- Soft Iron Core.
- 750 mA Current Drain
- Center Tapped Transformer
- Applications: On chassis AC/AC converter, Designing a battery Charger.
| Specifications | |
|---|---|
| Model | AS-2022 |
| Frequency | 50/60Hz |
| Mounting Type | Panel Mount |
| Type | Center Tapped Transformer |
| Core Type | Primary winding Core |
| Voltage | 9-0-9V |
| Brand | MSons |
| No. of Pins | 2 |
