Description

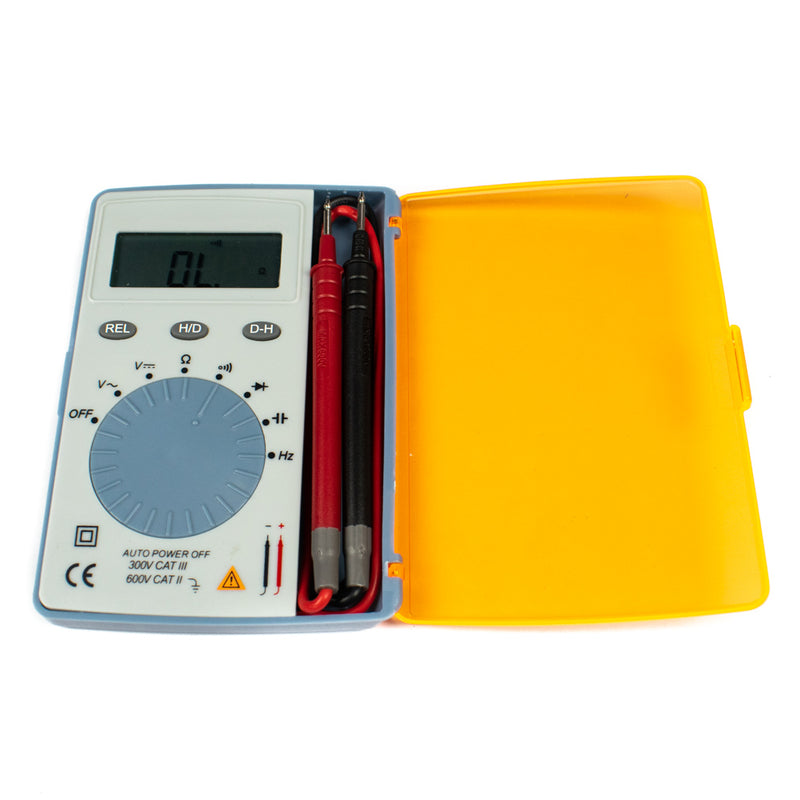

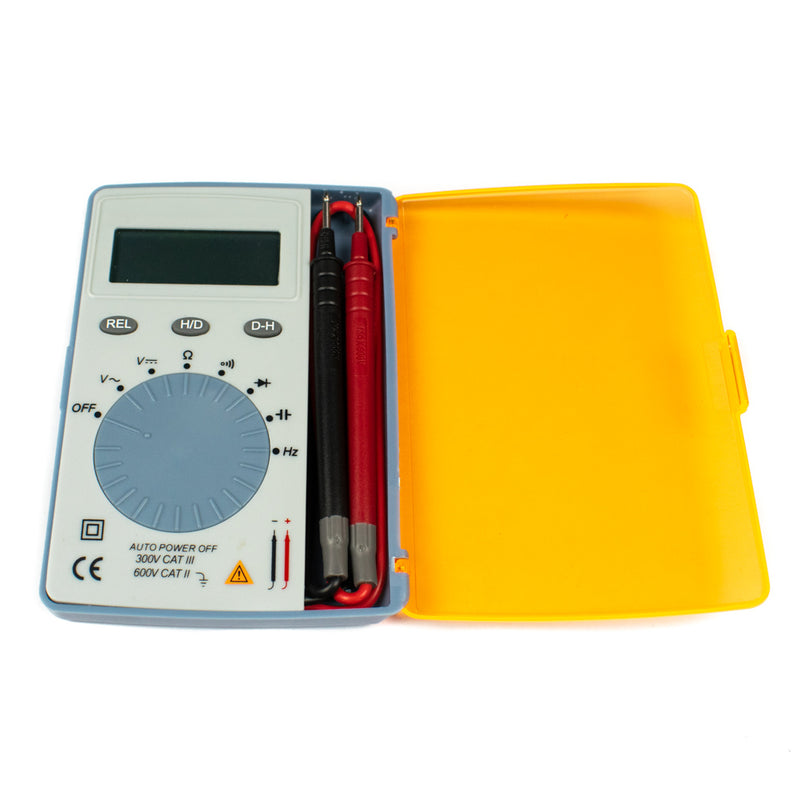

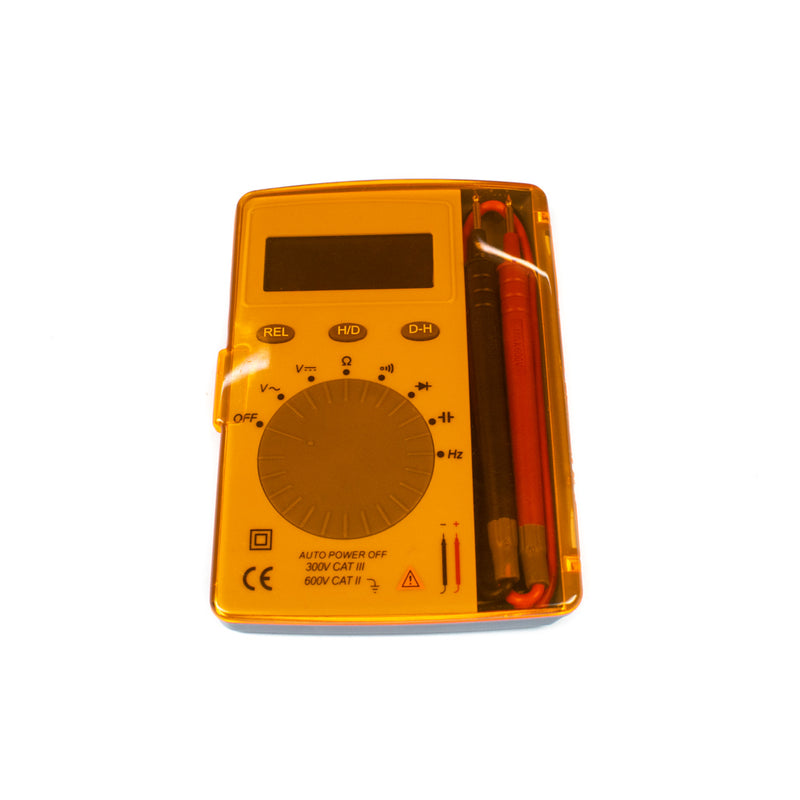

This is a portable professional measuring instrument with a perfect LCD. It has the function of auto range and data hold. It can show ranges engineering unit enunciators measuring results.
Features
- DC Voltage 400mV/4V/40V/400V/600V 0.1mV/1mV/10mV/100mV/1V ±(0.7%+2)
- AC Voltage 4V/40V/400V/600V 1mV/10mV/100mV/1V ±(0.8%+3)
- Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ 0.1Ω/1Ω/10Ω/100Ω/1kΩ ±(1.2%+2)
- 40MΩ 10kΩ ±(2.0%+5)
- Capacitance: 4nF/40nF/400nF/4μF/40μF/200μF
- 1pF/10pF/0.1nF/1nF/10nF/100nF, ±(3.0%+3)
- Frequency 10Hz 0.001Hz ±(2.0%+5)
- 100Hz/1000Hz/10kHz 0.01Hz/0.1Hz/1Hz ±(1.5%+5)
- 100kHz/200kHz 10Hz/100Hz ±(2.0%+5)
- >200KHz 100Hz Reference
- Duty Cycle 0.1%~99.9% 0.1% ±3.0%
Specifications
| Brand | Mastech |
| DC Voltage Range | 600V |
| AC Voltage Range | 600V |
| Display | LCD |
| Max. Count | 3999 |
| Auto Power Off Time | 15 min |
| Power Supply | 1.5V LR44 x2 |
| Operating Temperature | 0°C to 40°C |
| Size | 110x76x11mm |
| Weight | ~100g |
