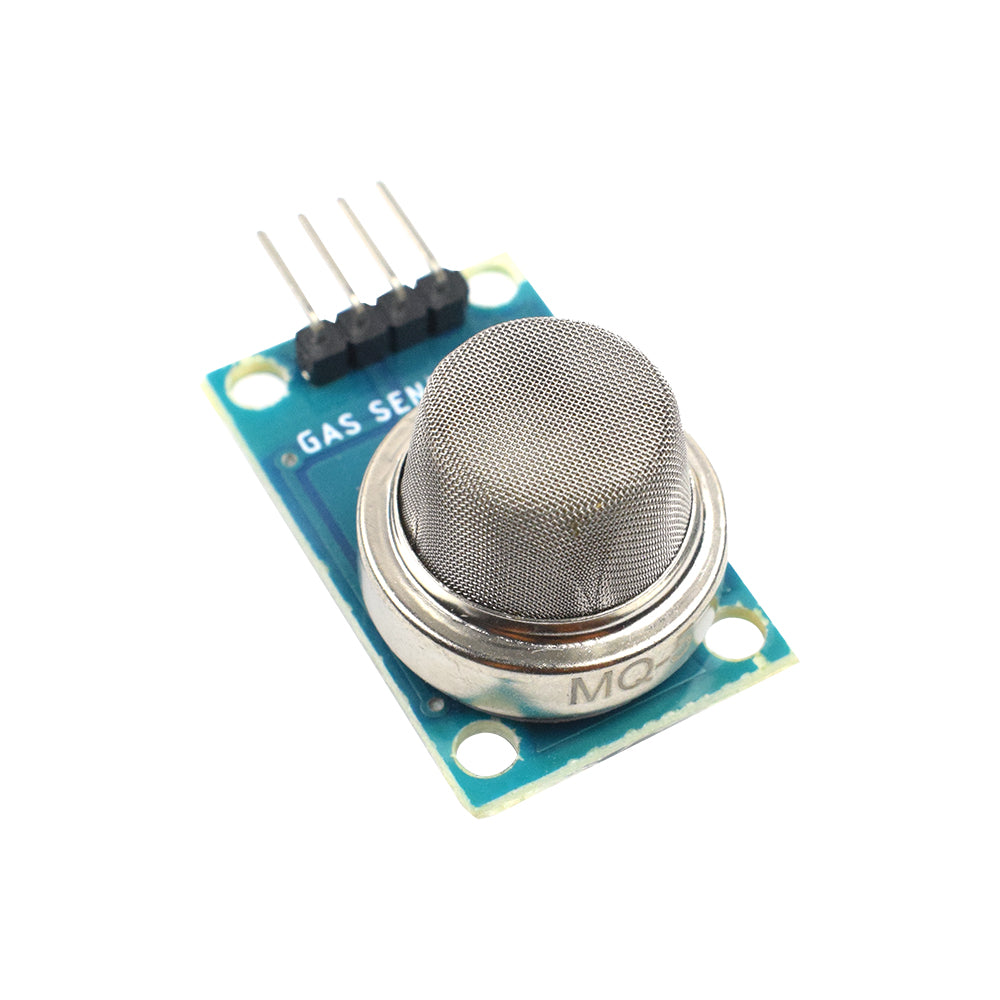

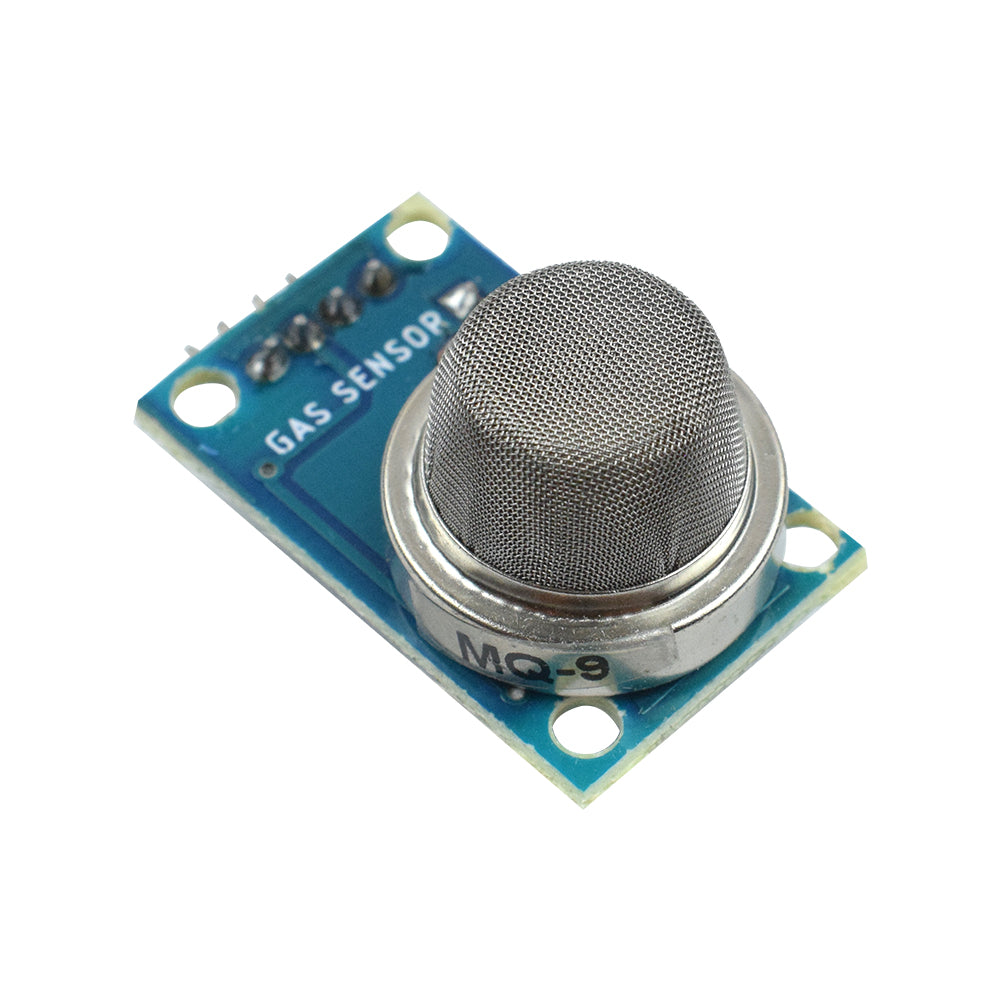

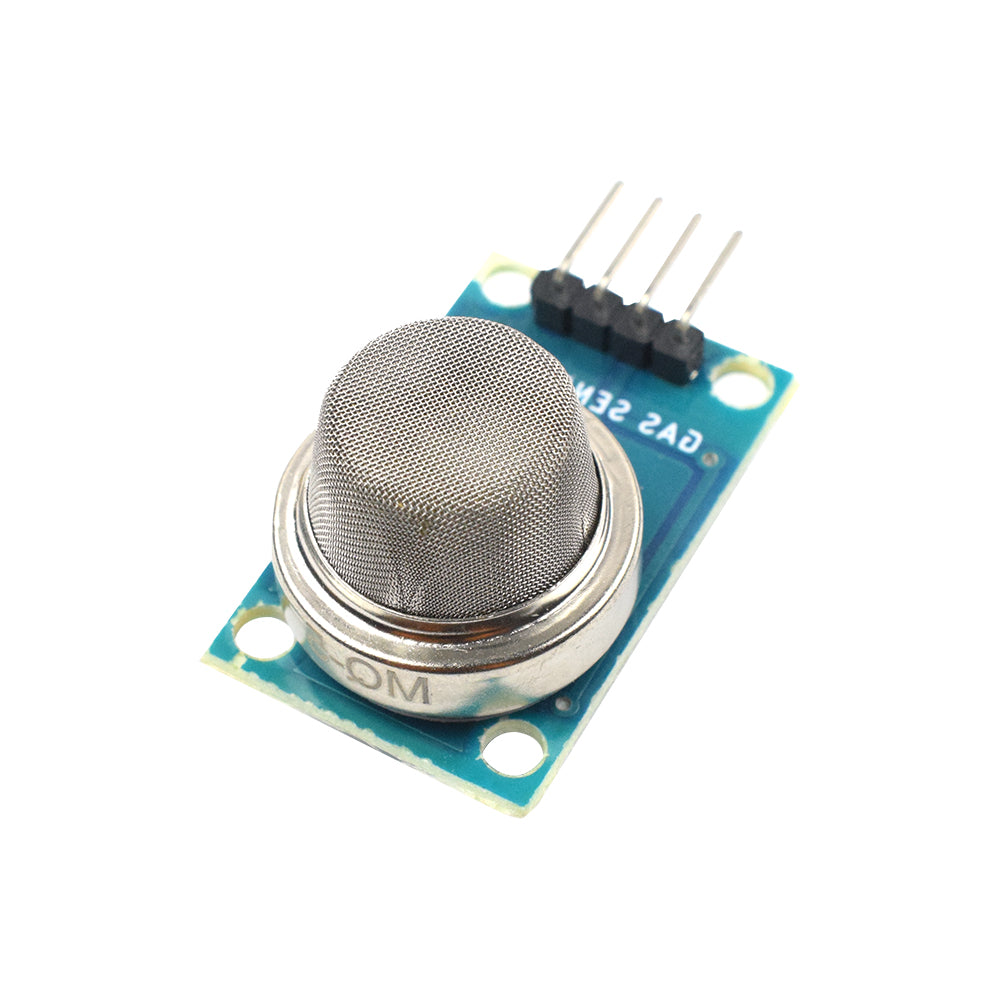

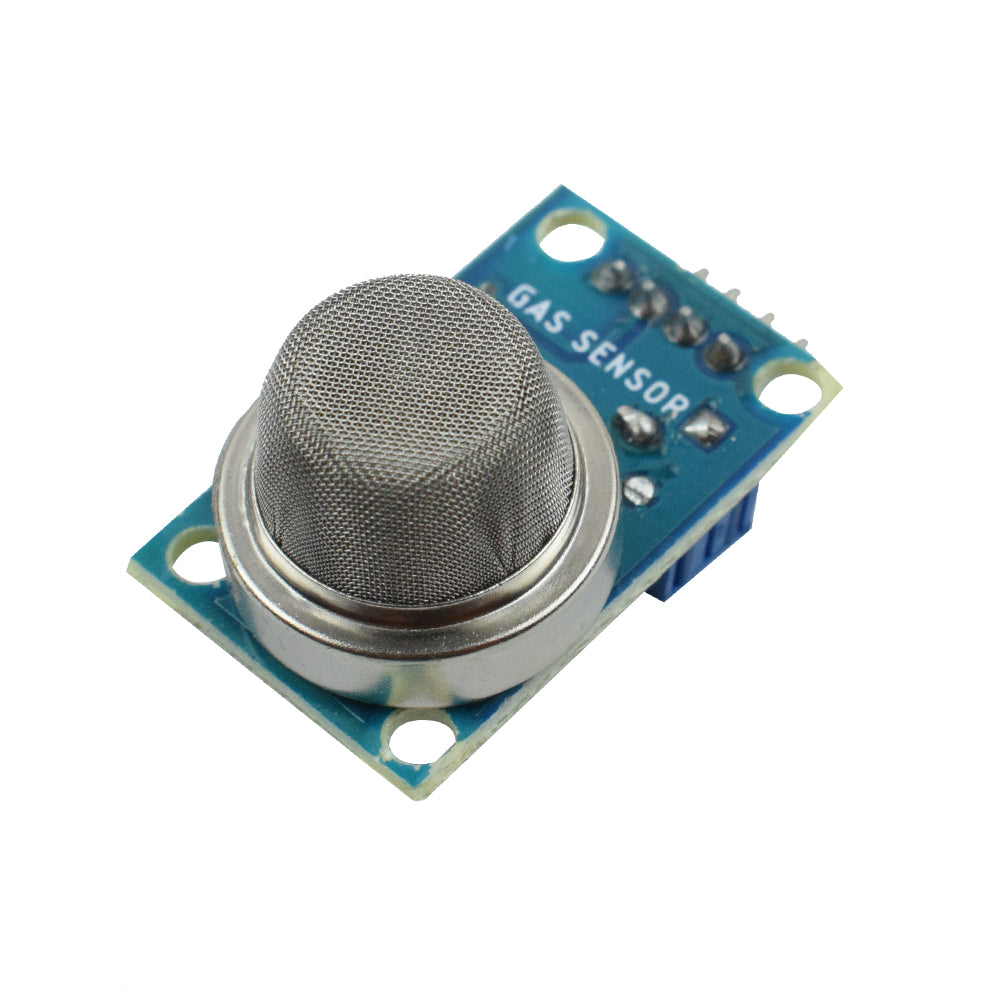

MQ-9 Gas Sensor Module

Save 20%
Sold By: HatchnHackSKU: V1711

Sale price₹ 115.00 Regular price₹ 143.00

Tax included Shipping calculated at checkout

Min Qty:


This MQ-9 gas sensor is very sensitive to carbon monoxide, methane and LPG. The sensitive material of the MQ-9 gas sensor is SnO2, which has a lower conductivity in clean air. It detects high and low temperature alternations and detects CO at low temperature (heated to 1.5V). The conductivity of the sensor increases as the gas concentration increases. As the temperature rises (heated to 5.0 V), it detects methane, propane, combustible gas, etc. and cleans other gases by adsorption at low temperature. MQ-9 is often used in household gas detector, industrial gas detector, portable gas detector, etc.
  • Suitable for home or factory gas leakage monitoring devices.
  • Have better sensitivity to Carbon Monoxide, Methane and LPG Gas.

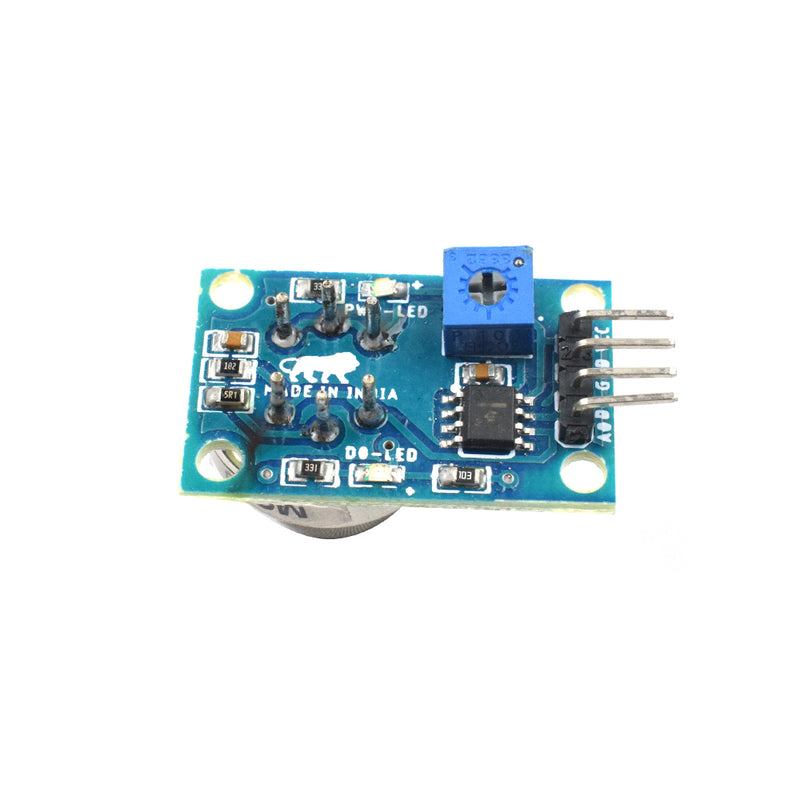

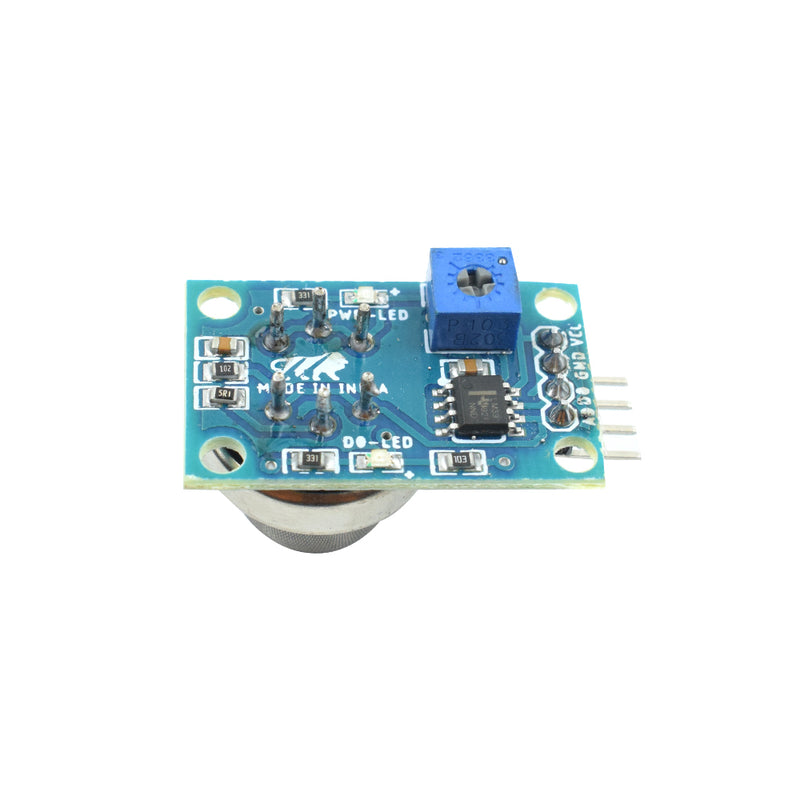

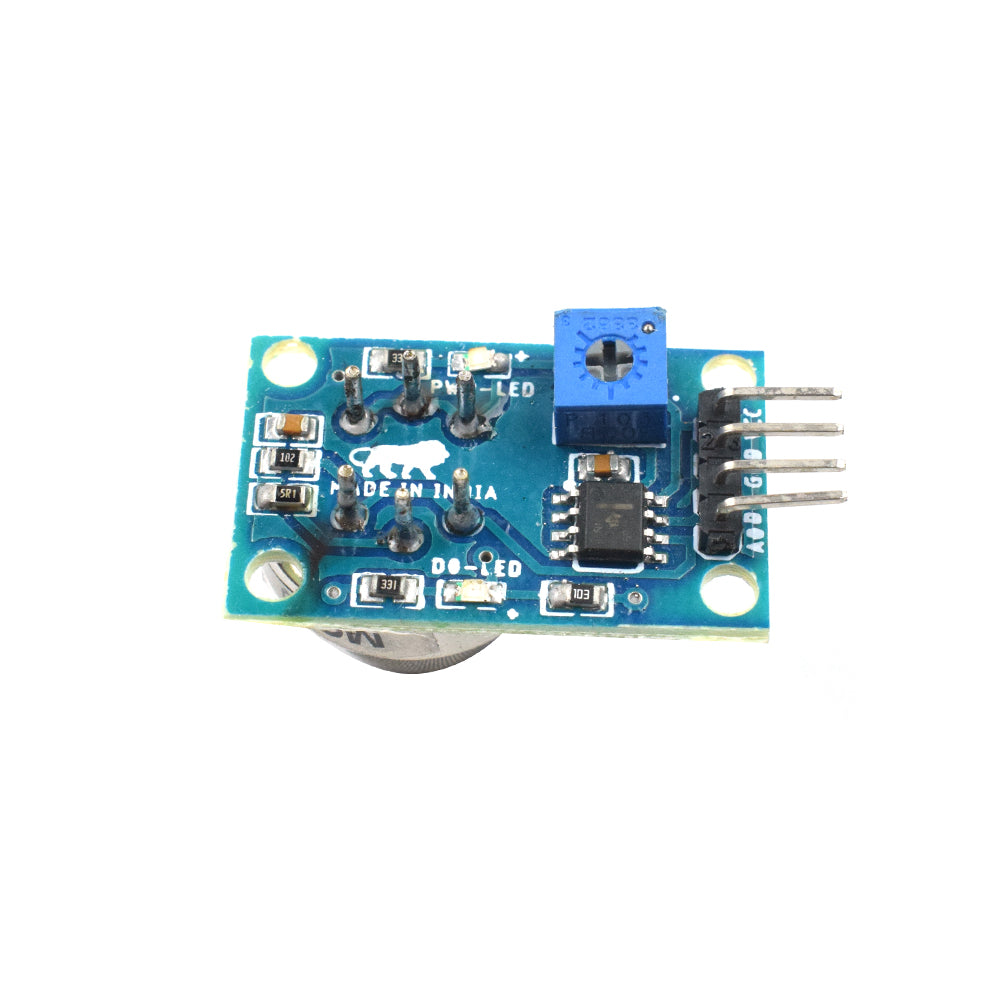

  • High quality dual-panel design, with power indicator and TTL signal output instructions.
  • Its has analog voltage
  • Its has four holes for mounting Purpose
  • Holes Diameter is 3.5mm
  • Its made in India
Model MQ-9
Type Gas sensor Module
Voltage 3V-5V
Output Type Digital and Analog
Current 150mA
Make India
Dimension 36x20x17mm
