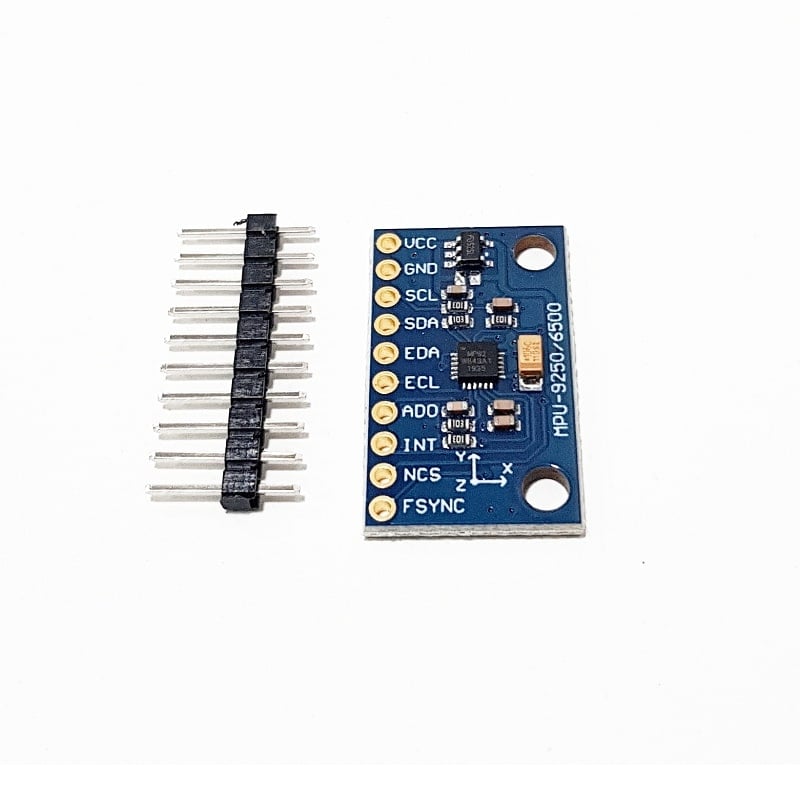

Description
- Accelerometer, Gyroscope, and Magnetometer
- Power Supply: DC3.3V-5V
- Chip: MPU9250
- Size: 22 mm x 17 mm.
- Gyro range : ± 250 500 1000 2000 ° / s
- Acceleration range: ± 2 ± 4 ± 8 ± 16g
- Magnetic field range: ± 4800uT
- 9 DOF modules
| Power Supply |
4.4 to 6.5 V or 3.3V (if you solder the solder jumper near the on-board voltage regulator) |
|---|---|
| Gyro range |
± 250 500 1000 2000 ° / s |
| Acceleration range |
± 2 ± 4 ± 8 ± 16g |
| Magnetic field range |
± 4800uT |
| Degree of Freedom (DOF) |
9 |
| Interface |
I2C |
| Length (mm): |
25 |
| Width (mm): |
15 |
| Height (mm): |
3.5 |
| Weight (g): |
5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 4 × 2 × 1 cm |
