Description

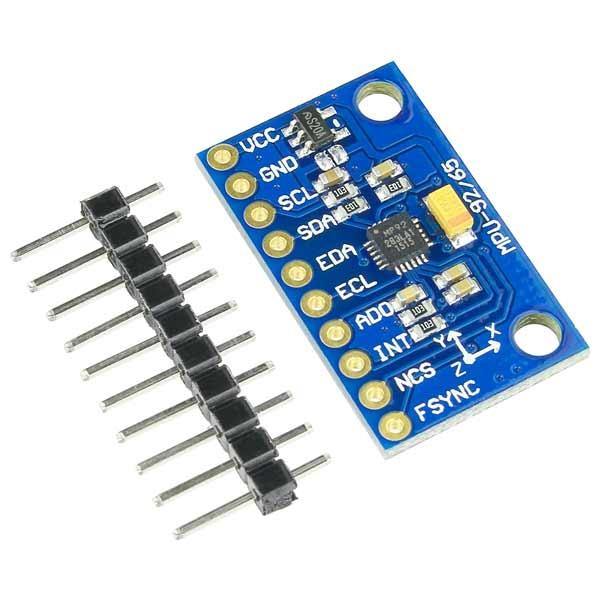

MPU-9250 6-Axis Attitude Gyro and Accelero Sensor Module (Without Magnetometer)
MPU9250 6-Axis Attitude Gyro Accelerator Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis accelerometer and gyroscope. Hence, the MPU-9250 is a 6-axis Motion Tracking device that combines a 3-axis accelerometer and gyroscope and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.
The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator.
Applications
- FPV, RC, and Robots systems
- GPS navigation systems
- Impact recognition and logging
- Gaming and virtual reality input devices
- Motion-activated functions
- Intelligent power saving for handheld devices
- Vibration monitoring and compensation
- Free-fall detection
- 6D-orientation detection
Package Includes:
- 1 x MPU-9250 Module
Specifications
| Module Model | GY-9250 |
| Use chip | MPU-9250 |
| Pin spacing | 2.54mm |
| Gyroscope range | ± 250 500 1000 2000 ° / s |
| Dimensions | 15mm * 25mm |
| Weight | 5 grams |
