Description

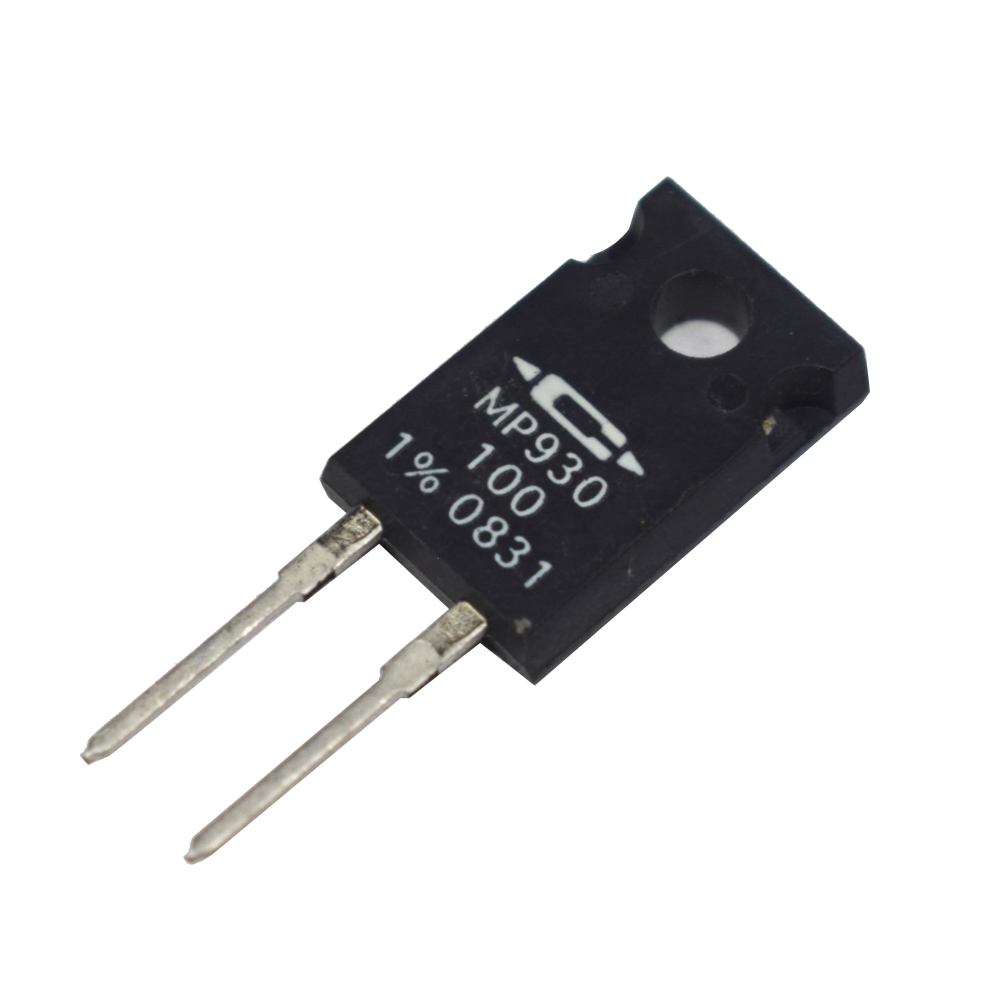

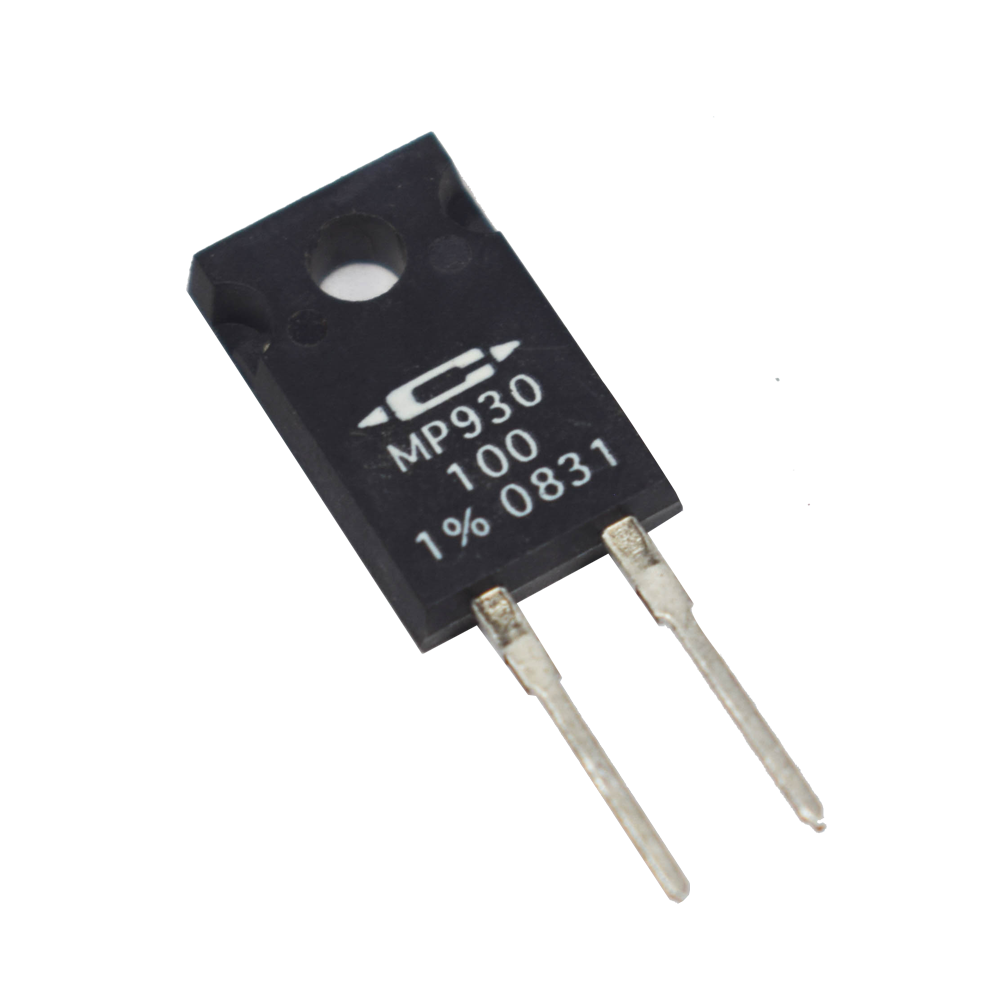

MP930 is a power film resistor this resistor is use to dissipate maximum power from the circuit. and the common thing of all power resistor is that they dissipate more power as much as possible and the power rating is 30W. Its operating temperature is -55 to 150°C. The Tolerance of this resistor is ±1%.
Features
-
Maximum voltage is 25V
-
flat heat sink surface with a thermal interface material
-
Power rating is 30W
-
Max Storage & Operating temperature should be: -55 to +150 Centigrade
Specification
| Model | MP930 |
| Type | Power film resistor |
| Packaging | Through hole |
| Resistance | 2kohm |
| Voltage rating | 250V |
| Case temperature | 25°C |
| Package | TO-220 |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
