Description
- CW/CCW/short break/stop motor control modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- Standby control to save power
- CW/CCW/short brake/stop motor control modes
- Operating Voltage(VDC): 15
- Peak Current (A): 3.2
- Continuous Current (A): 1.2
- No. of Channels: 1
| Driver Model |

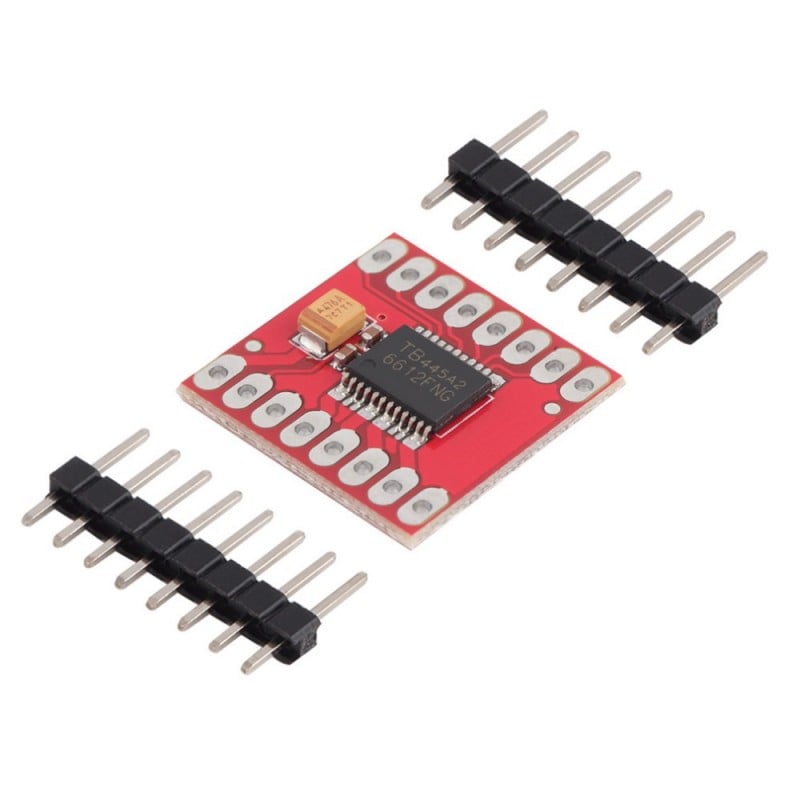

TB6612FNG |
|---|---|
| Operating Voltage (VDC) |
15 |
| Peak Current (A) |
3.2 |
| Continuous Current (A) |
1.2 |
| No. of Channels |
1 |
| LED Indicator |
Yes |
| Cooling Fan |
No |
| Arduino Sheild |
No- can be used with Wire connection |
| Polarity Protection |
NO |
| Dimensions in mm (LxWxH) |
30 x 20 x 10 |
| Weight (g): |
22 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 5 × 3 × 2 cm |
