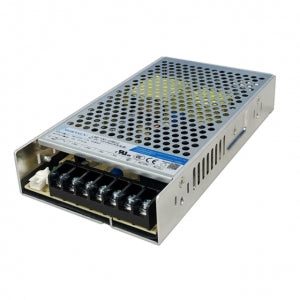

Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply

Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply

The LMF100-23B12 is a 100W enclosed AC/DC power supply from Mornsun. It has a universal input voltage range of 85-305VAC and an output voltage of 12V. The power supply is also equipped with a power factor correction (PFC) circuit, which helps to improve the power efficiency of the device.

Features:

• Universal input voltage range of 85-305VAC
• Output voltage of 12V
• Power factor correction (PFC) circuit
• Built-in remote on/off switch
• Adjustable output voltage
• LED indicator for power on

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply

Specifications
