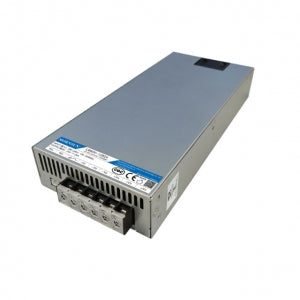

Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply

Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply

The LM600-12B27 is a high-efficiency, enclosed AC/DC switching power supply that features a wide input voltage range of 176-264VAC or 240-370VDC. It can also accept AC or DC input (dual-use of same terminal), making it versatile and adaptable to a variety of applications. The LM600-12B27 has an operating ambient temperature range of -20℃ to +60℃ and can operate up to 5000m altitude. It also features a number of safety protections, including over-temperature protection, output short circuit, over-current, and over-voltage protection. The LM600-12B27 is equipped with a built-in DC fan for cooling and has a remote sense function for monitoring the output voltage.

Features:

• Wide input voltage range: 176-264VAC or 240-370VDC
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -20℃ to +60℃
• LED indicator for power on
• Operating up to 5000m altitude
• Over-temperature protection, output short circuit, over-current, over-voltage protection
• Built-in DC fan

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply

Specifications
