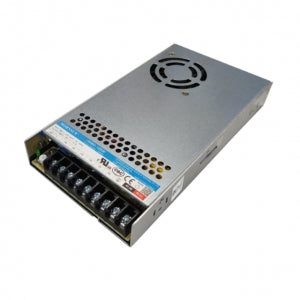

Mornsun LM350-12B48 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-12B48 AC/DC 350W Enclosed Switching Power Supply

The LM350-12B48 is a universal input, enclosed, switch-mode power supply (SMPS) that provides 350 watts of output power at 48 volts DC. It has a wide input voltage range of 176 to 264 VAC or 240 to 370 VDC, and can be used in a variety of applications, including industrial, medical, and telecommunications.

The LM350-12B48 features a high efficiency of up to 89%, which helps to reduce power consumption and heat dissipation. It also has a low ripple noise of less than 1%, which helps to protect sensitive electronic equipment.

The LM350-12B48 is a reliable and versatile SMPS that can be used in a variety of applications. It is backed by a one-year warranty from Mornsun.

Features:

• Universal input voltage range of 176 to 264 VAC or 240 to 370 VDC
• Output power of 350 watts
• Output voltage of 48 volts DC
• High efficiency of up to 89%
• Low ripple noise of less than 1%
• Enclosed case for protection from dust and debris

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x Mornsun LM350-12B48 AC/DC 350W Enclosed Switching Power Supply

Specifications
