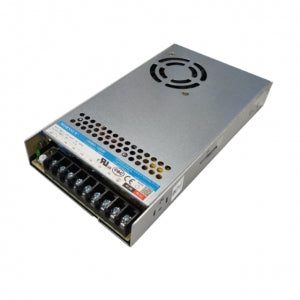

Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply

The LM350-12B36 is a 36V, 350W AC/DC power supply that is ideal for a variety of applications, including industrial automation, control panels, and LED lighting. It features a universal input voltage range of 176-264VAC or 240-373VDC, and an efficiency of up to 89% at 230VAC. The LM350-12B36 also features a number of safety features, including short circuit protection, overvoltage protection, and overload protection.

Features:

• Universal input voltage range: 176-264VAC or 240-373VDC
• Output voltage: 36V
• Output current: 10A
• Power: 350W
• Efficiency: up to 89% at 230VAC
• Short circuit protection
• Overvoltage protection
• Overload protection

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM350-12B36 AC/DC 350W Enclosed Switching Power Supply

Specifications:
