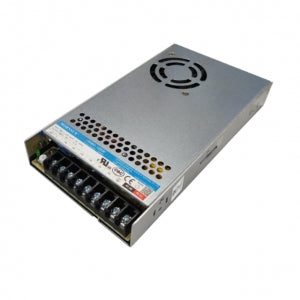

Mornsun LM350-12B15 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-12B15 AC/DC 350W Enclosed Switching Power Supply

The LM350-12B15 is a 350 watt enclosed AC/DC switching power supply from Mornsun. It has a universal input voltage of 115VAC to 230VAC, 50/60Hz, and an output voltage of 12 volts. The output current is 23.2 amperes, for a total power output of 350 watts. The LM350-12B15 has a high efficiency of up to 88%, and it is also RoHS compliant.

Features:

• Universal input voltage of 115VAC to 230VAC, 50/60Hz
• Output voltage of 12 volts
• Output current of 23.2 amperes
• Total power output of 350 watts
• High efficiency of up to 88%
• RoHS compliant

check out : Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM350-12B15 AC/DC 350W Enclosed Switching Power Supply

Specifications:
