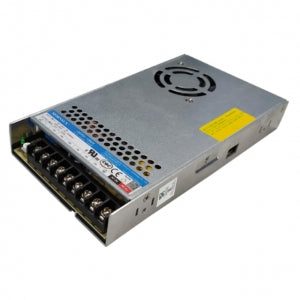

Mornsun LM350-10B05 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-10B05 AC/DC 350W Enclosed Switching Power Supply

The LM350-10B05 is a cost-effective, enclosed AC-DC switching power supply from Mornsun. It features selectable AC input and DC input voltage, low no load power consumption, high efficiency, and high reliability. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. The LM350-10B05 is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment.

check out : Mornsun LM350-10B36 AC/DC 350W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM350-10B05 AC/DC 350W Enclosed Switching Power Supply

Specifications
