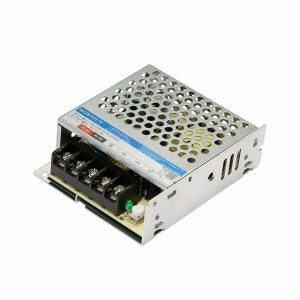

Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply

The LM35-22B05 is a 35W enclosed switching power supply from Mornsun. It features an AC input of 165-264VAC or a DC input of 180-370VDC, and can be used to output a regulated DC voltage of 5V at a current of up to 7A. The LM35-22B05 has a number of features that make it a versatile and reliable power supply for a variety of applications, including:

• High efficiency: The LM35-22B05 has a high efficiency of up to 86%, which helps to reduce power consumption and heat dissipation.
• Low noise: The LM35-22B05 produces very low noise, which makes it ideal for use in sensitive applications.
• Over-voltage protection: The LM35-22B05 has over-voltage protection to prevent damage to the power supply or connected equipment.
• Short circuit protection: The LM35-22B05 has short circuit protection to prevent damage to the power supply or connected equipment.
• Over current protection: The LM35-22B05 has over current protection to prevent damage to the power supply or connected equipment.

The LM35-22B05 is a compact and easy-to-use power supply that is ideal for a variety of applications, including LED lighting, industrial control, and telecommunications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM35-22B05 AC/DC 35W Enclosed Switching Power Supply

Specifications:
