Description

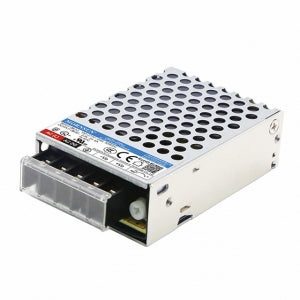

Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS
The LM25-23B03 is an enclosed type AC/DC power supply from Mornsun. It has an output voltage of 3.3V and a maximum output current of 6A, for a total power output of 19.8W. The input voltage range is 85-305VAC, and the output voltage is adjustable in 10mV steps. The power supply is also equipped with a power factor correction (PFC) function, which helps to improve the efficiency of the power supply and reduce the amount of power wasted as heat.
The LM25-23B03 is a versatile power supply that can be used in a variety of applications, including industrial automation, telecommunications, and consumer electronics. It is also compliant with a number of safety standards, including IEC/EN 62368-1 and UL 62368-1.
Features:
- Enclosed type
- Output voltage: 3.3V
- Output current: 6A
- Power output: 19.8W
- Input voltage range: 85-305VAC
- Adjustable output voltage
- Power factor correction (PFC)
- Compliant with IEC/EN 62368-1 and UL 62368-1
check out : Mornsun LM25-23B48 AC/DC 25W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM25-23B03 AC/DC 25W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Output voltage | 3.3V |
| Output current | 6A |
| Power output | 19.8W |
| Dimensions | 120 x 60 x 30mm |
| Weight | 0.5kg |
| Operating temperature range | -30 to +70°C |
| Storage temperature range | -40 to +85°C |
| Humidity | 0 to 95% (non-condensing) |
