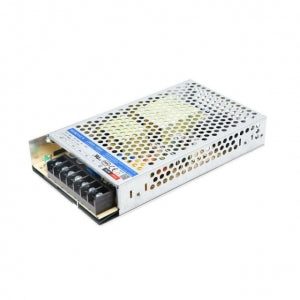

Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply

The LM200-12B36 is an enclosed AC-DC switching power supply from Mornsun. It has a universal input voltage of 176-264VAC or 240-373VDC, an output voltage of 36VDC, an output current of 5.9A, and an output power of 200W. It is also equipped with a number of features that make it ideal for a variety of applications, including:

• High efficiency: The LM200-12B36 has an efficiency of up to 89%, which helps to reduce energy costs.
• Low noise: The LM200-12B36 produces very low noise, which makes it ideal for use in sensitive applications.
• Wide temperature range: The LM200-12B36 can operate in temperatures ranging from -30°C to +70°C, making it suitable for use in a variety of environments.
• Durable construction: The LM200-12B36 is built with a durable metal housing that protects it from damage.

The LM200-12B36 is a versatile and reliable power supply that is ideal for a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM200-10B24 AC/DC 200W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply

Specifications:
