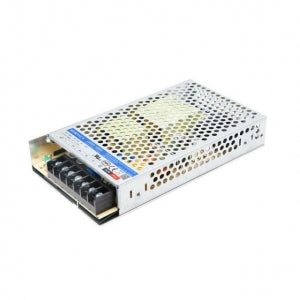

Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply

The LM200-12B15 is an enclosed AC/DC switching power supply from Mornsun. It has a maximum output power of 210 watts and can output a regulated 12 volts DC at 14 amps. The power supply has a universal input voltage range of 176 to 264 VAC or 240 to 370 VDC. It is also equipped with short circuit, over voltage, over current, and over temperature protection. The LM200-12B15 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features:

• Universal input voltage range of 176 to 264 VAC or 240 to 370 VDC
• Maximum output power of 210 watts
• Regulated 12 volts DC output at 14 amps
• Short circuit, over voltage, over current, and over temperature protection
• Cost-effective and reliable
• Suitable for a wide range of applications

check out : Mornsun LM200-12B36 AC/DC 200W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply

Specifications:
