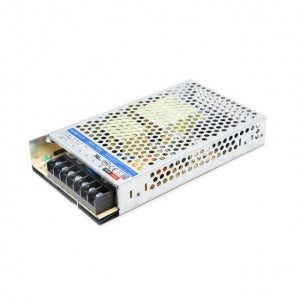

Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply

The LM200-12B05 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 90-264VAC, 50/60Hz, and can output a constant 12V DC at up to 150W. The power supply is also equipped with short circuit, over voltage, over current, and over temperature protection.

Features:

• Universal input voltage: 90-264VAC, 50/60Hz
• Output voltage: 12V DC
• Output current: 150W
• Short circuit protection
• Over voltage protection
• Over current protection
• Over temperature protection

check out : Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM200-12B05 AC/DC 200W Enclosed Switching Power Supply

Specifications:
