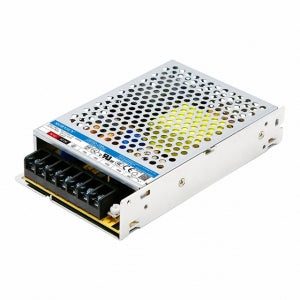

Mornsun LM150-23B55 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-23B55 AC/DC 150W Enclosed Switching Power Supply

The LM150-23B55 is a small outline switch-mode power supply (SMPS) from Mornsun. It has an input voltage range of 85 to 305 VAC or 120 to 430 VDC, and an output voltage of 55 VDC at 2.73A. The efficiency is up to 90%, and the isolation voltage is 4000 VAC. The power supply is housed in a metal case and has terminal block terminals.

Features:

• Small outline design
• Wide input voltage range
• High output current
• High efficiency
• 4000 VAC isolation
• Metal case
• Terminal block terminals

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM150-23B55 AC/DC 150W Enclosed Switching Power Supply
