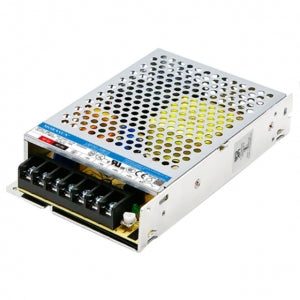

Mornsun LM150-22B24 AC/DC 150W Enclosed Switching Power Supply
The LM150-22B24 is a universal type industrial power supply manufactured by Mornsun. It offers a compact and efficient solution for various power applications. With a wide input voltage range and high isolation capability, this power supply is designed to meet the demands of industrial environments.
Features
- Power(W): 156
- Input Voltage (VAC): 165-264
- Input Voltage (VDC): 180-370
- Output Voltage (VDC): 24
- Output Current (A): 6.5
- Efficiency (%): 88
- Isolation Voltage (VAC): 4000
read more : Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM150-22B24 AC/DC 150W Enclosed Switching Power Supply
Specifications:
| Power (W) | 156 |
| Input Voltage (VAC) | 165-264 |
| Input Voltage (VDC) | 180-370 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 6.5 |
| Efficiency (%) | 88 |
| Isolation (VAC) | 4000 |
