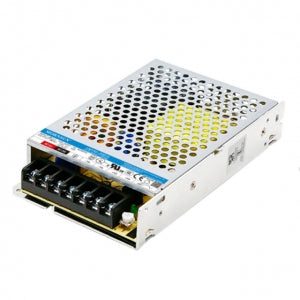

Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply

The LM150-20B48 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264VAC and 120-370VDC. The power supply has a power output of 158.4W and provides a regulated output voltage of 48VDC. It offers high efficiency of 89% and is designed for reliable performance in various industrial applications. The LM150-20B48 also features 4000VAC isolation for enhanced safety.

Features

• Universal type power supply with 264VAC input voltage
• Power output: 158.4W
• Input voltage range: 85-264VAC, 120-370VDC
• Regulated output voltage: 48VDC
• Output current: 3.3A
• High efficiency: 89%
• Isolation voltage: 4000VAC

check out : Mornsun LM150-20B36 AC/DC 150W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM150-20B15 AC/DC 150W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply

Specifications
