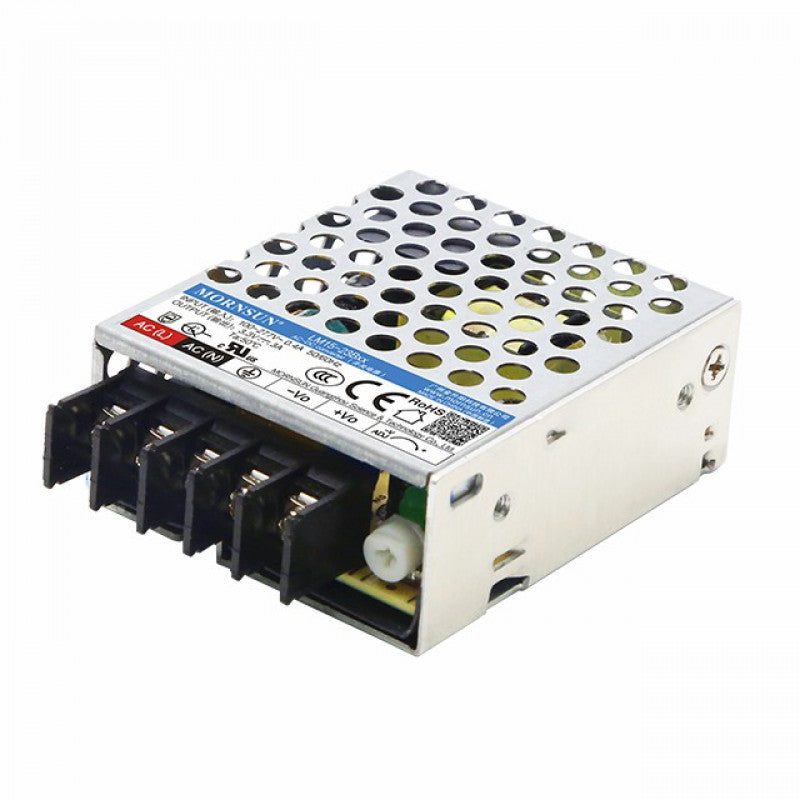

Mornsun LM15-23B15 AC/DC 15W Enclosed SMPS

Mornsun LM15-23B15 AC/DC 15W Enclosed SMPS

The LM15-23B15 series is a universal AC-DC switching power supply from Mornsun. It features a wide input voltage range, accepts AC or DC input, and has low no load power consumption. It is also highly efficient and reliable. The LM15-23B15 series meets a variety of standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• Wide input voltage range: 85 - 305VAC or 100 - 430VDC
• Accepts AC or DC input
• Low no load power consumption
• High efficiency
• High reliability
• Meets a variety of standards
• Widely used in a variety of industries

If you are looking for a versatile and reliable AC-DC switching power supply, the LM15-23B15 series is a great option. It is sure to meet your needs in a variety of applications.

check out : Mornsun LM15-23B24 AC/DC 15W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM15-23B15 AC/DC 15W Enclosed SMPS

Specifications
