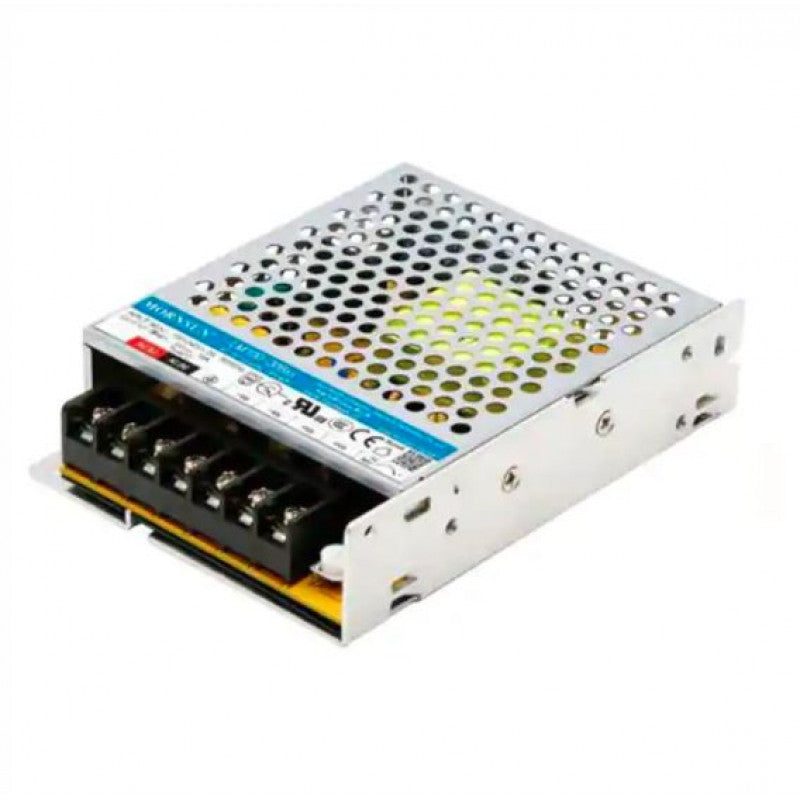

Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS

Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS

The LM15-23B12 series is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305 VAC or 100 to 430 VDC, and can accept DC input voltage. The LM15-23B12 is cost-effective, has low no-load power consumption, high efficiency, and high reliability. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards. The LM15-23B12 is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• Universal AC input of 85 to 305 VAC or 100 to 430 VDC
• Accepts DC input voltage
• Cost-effective
• Low no-load power consumption
• High efficiency
• High reliability
• Excellent EMC performance
• Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards
• Widely used in a variety of applications

If you are looking for a reliable and versatile AC-DC switching power supply, the LM15-23B12 is a great option. It offers a wide range of features and is suitable for a variety of applications.

check out : Mornsun LM15-23B05 AC/DC 15W Enclosed SMPS

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS

Package Includes:

1 x Mornsun LM15-23B12 AC/DC 15W Enclosed SMPS

Specifications:
