Description

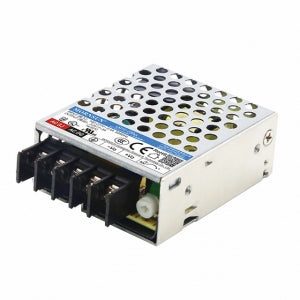

Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS
The LM15-23B03 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305 VAC or 100 to 430 VDC, and can output a regulated 3.3V at up to 3A. The LM15-23B03 is also equipped with a power factor correction (PFC) circuit, which helps to improve the efficiency of the power supply and reduce its overall power consumption.
Features:
- Universal AC input of 85 to 305 VAC or 100 to 430 VDC
- Regulated output voltage of 3.3V
- Output current of up to 3A
- Power factor correction (PFC) circuit
- Low no-load power consumption
- High efficiency and reliability
- Compact and lightweight design
The LM15-23B03 is a versatile and reliable power supply that can be used in a wide variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
check out : Mornsun LM15-23B48 AC/DC 15W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM15-23B03 AC/DC 15W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Output power | 15W |
| Input voltage | 85 to 305 VAC or 100 to 430 VDC |
| Output voltage | 3.3V |
| Output current | 3A |
| Power factor | 0.98 |
| Efficiency | >90% |
| Dimensions | 120 x 60 x 35mm |
| Weight | 0.3kg |
