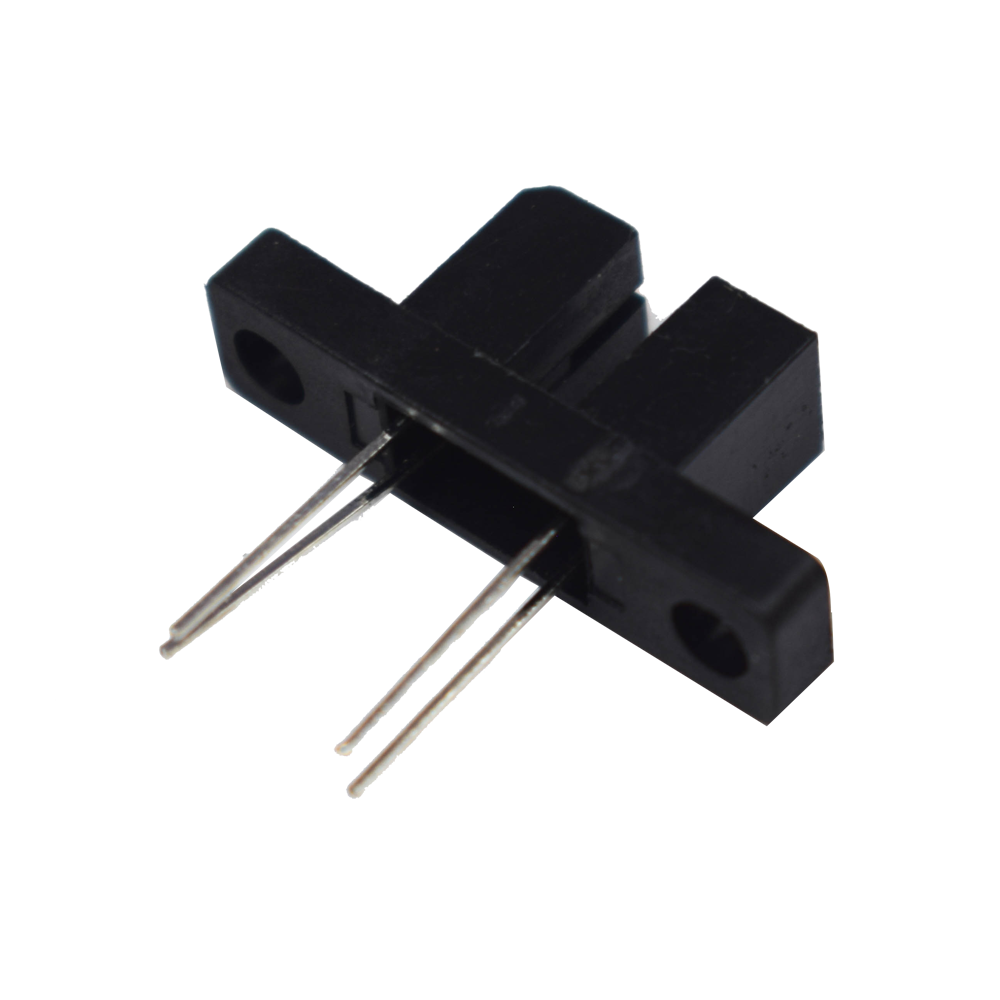

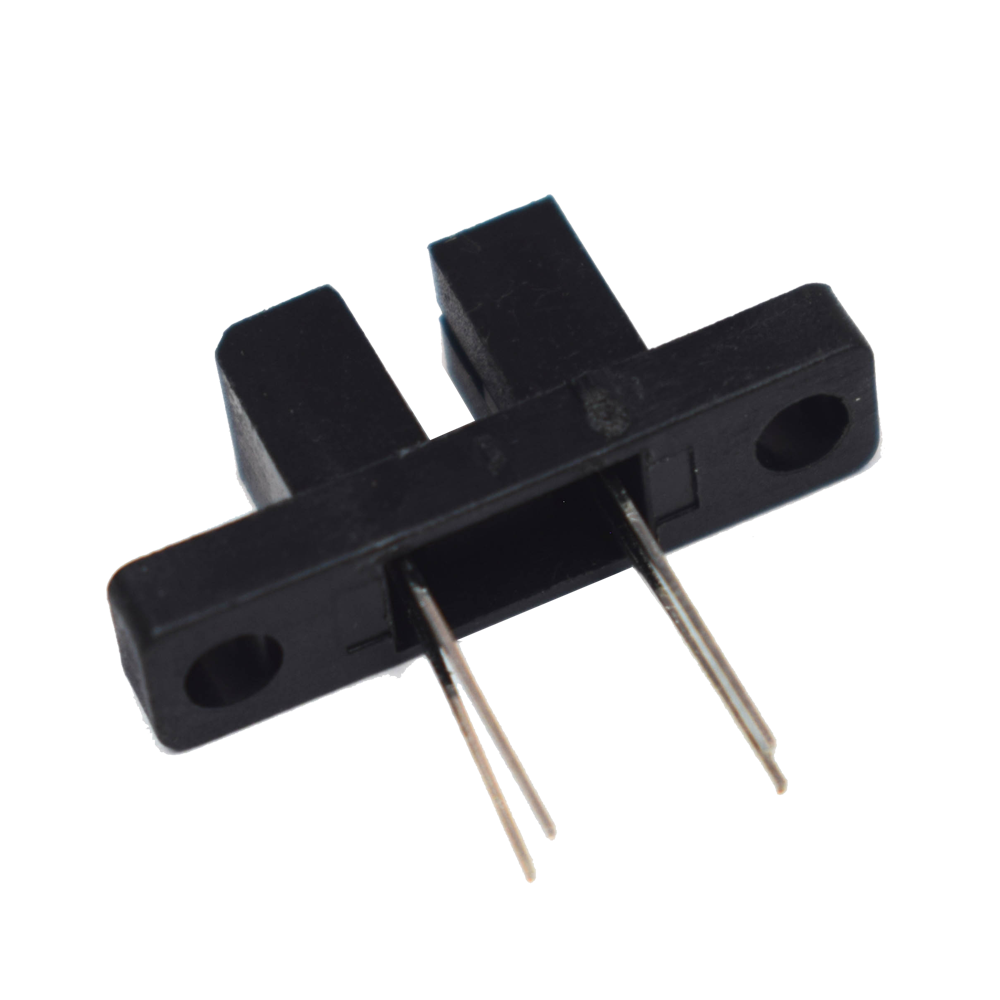

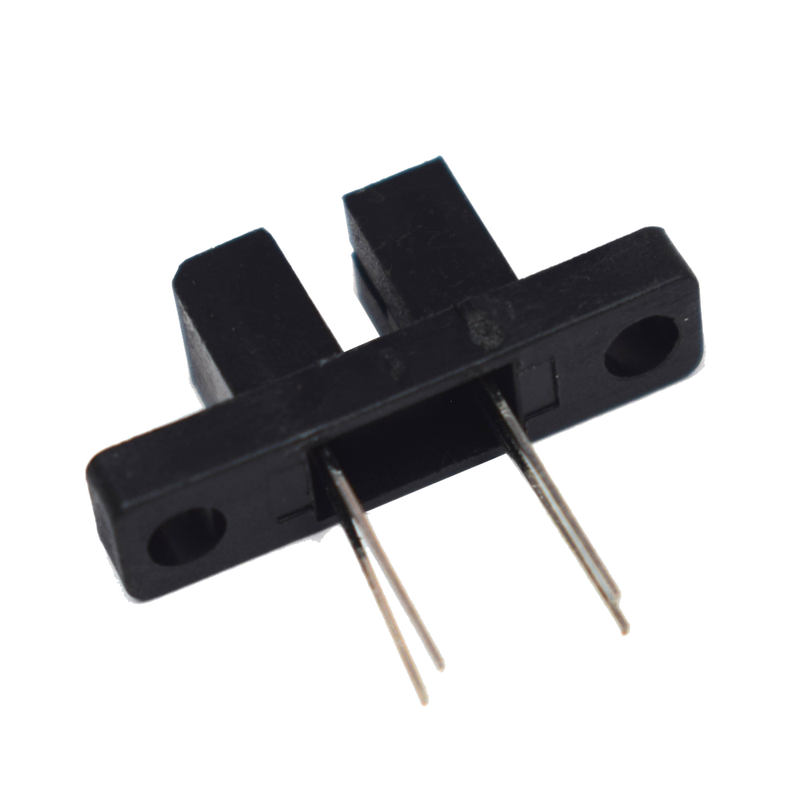

MOC7811 Slotted Opto Isolator Module

Sold By: EnGenius LabSKU: ENG-80

Price:
Sale price₹ 22.00

Tax included Shipping calculated at checkout

Min Qty:

Description

The MOC7811 is an infrared-based optical sensor. It contains an IR emitter and receiver pair mounted facing each other. It can be used with encoders to detect wheel speed, angle, etc. When the light emitted by IR LED is blocked because of alternating slots on the encoder disc logic level of the photodiode changes. The microcontroller or discrete hardware can detect this shift in logic level.

Pinouts

  1. Cathode
  2. Collector
  3. Anode
  4. Emitter
Applications
  • DC motor position/velocity control
  • Factory automation robots
  • Numerically controlled machinery
  • Computer printers and plotters
Specification
Model
MOC7811
Width
24.3mm
Height (excluded lead) 10.2mm
Current Transfer Ratio (CTR) 20mA
Type
Optical Switch
Application Speed Sensor
Case 354A
Pitch 2.54mm
Make  Made in India
