Description

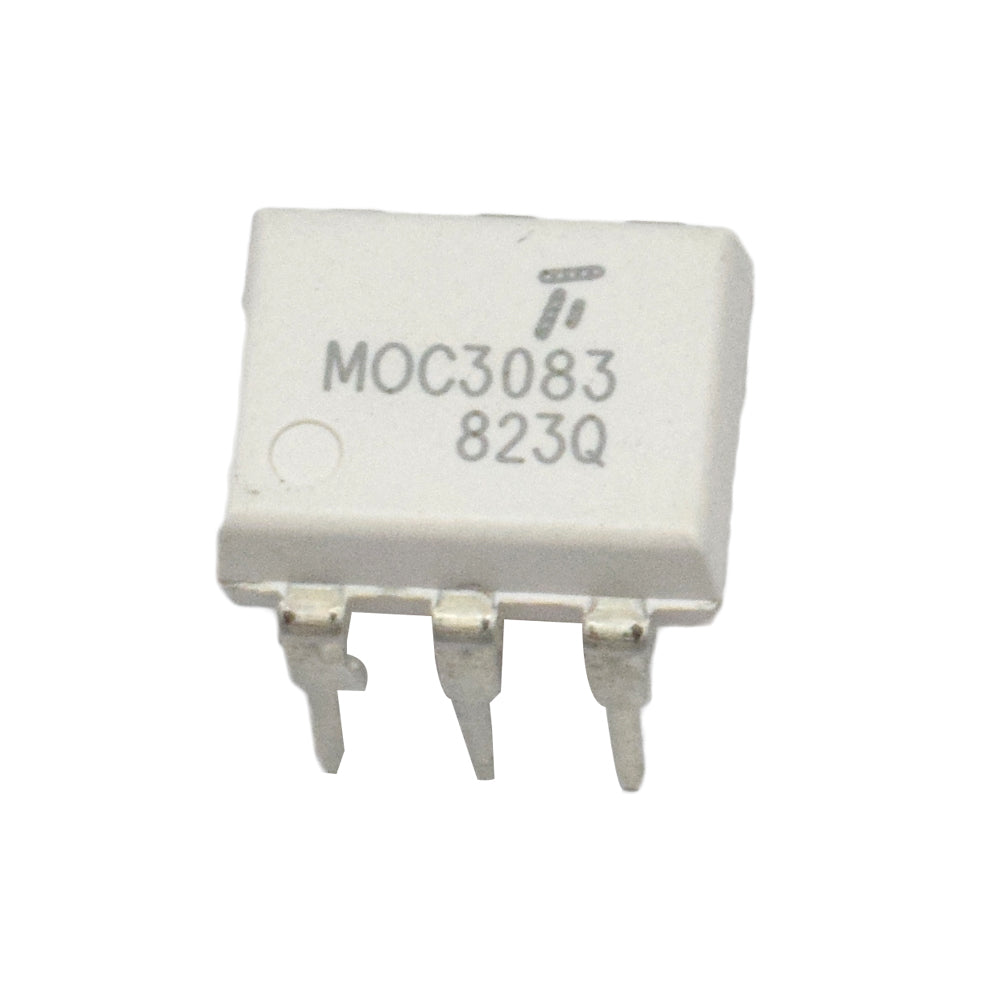

The MOC3083M devices are made up of a GaAs infrared emitting diode that is optically coupled to a monolithic silicon detector that serves as a zero voltage crossing bilateral triac driver. They are intended for use with a discrete power triac in the interface of logic systems to 240 VAC line-powered equipment, such as a solid state relay.
Applications
- Solenoid controls
- Lighting controls
- Static power switches
- AC motor drives
- Temperature controls
- AC motor starters
- Solid state relays
Specifications
| Model | MOC3083 |
| Product | Zero Cross Triac Driver Optoisolator IC |
| Type |
Optocoupler IC |
| Isolation Voltage | 5250 Vrms |
| Off-state Output Voltage VDRM | 800 V |
| Zero-Crossing Voltage | 20 V |
| Forward Current | 60 mA |
| Forward Voltage | 1.3 V |
| Pitch |
2.0mm |
| Number of pins | 06 |
| Package | DIP-6 |
| No. of Channel | One Channel |
| Country of Origin | China |
